ACCESSORIES

UBIMAIOR ITALIA offers a complete range of rigging equipment and accessories.

Select Filters:

Select Filters:

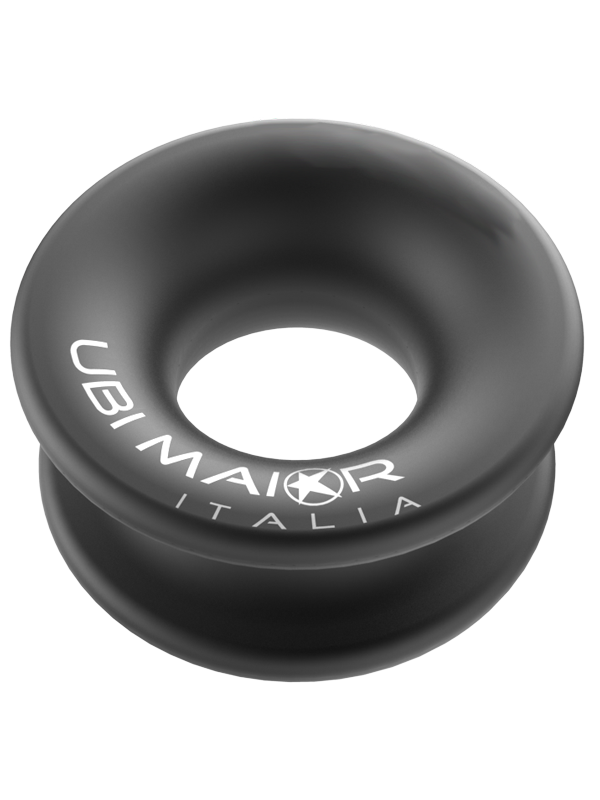

AN07.05
D1: 7mm
D2: 18mm
Ø: 5mm
T: 9mm
MAX WORKING LOAD: 400Kg
BREAKING LOAD: 800Kg
WEIGHT: 3g
Description: ring/aluminum
AN10.07
D1: 10mm
D2: 25mm
Ø: 7mm
T: 12mm
MAX WORKING LOAD: 800Kg
BREAKING LOAD: 1600Kg
WEIGHT: 5g
Description: ring/aluminum
AN14.10
D1: 14mm
D2: 35mm
Ø: 10mm
T: 15mm
MAX WORKING LOAD: 1600Kg
BREAKING LOAD: 3200Kg
WEIGHT: 12g
Description: ring/aluminum
AN20.14
D1: 20mm
D2: 50mm
Ø: 14mm
T: 22mm
MAX WORKING LOAD: 3200Kg
BREAKING LOAD: 6400Kg
WEIGHT: 44g
Description: ring/aluminum
AN28.20
D1: 28mm
D2: 65mm
Ø: 20mm
T: 31mm
MAX WORKING LOAD: 6400Kg
BREAKING LOAD: 12800Kg
WEIGHT: 120g
Description: ring/aluminum

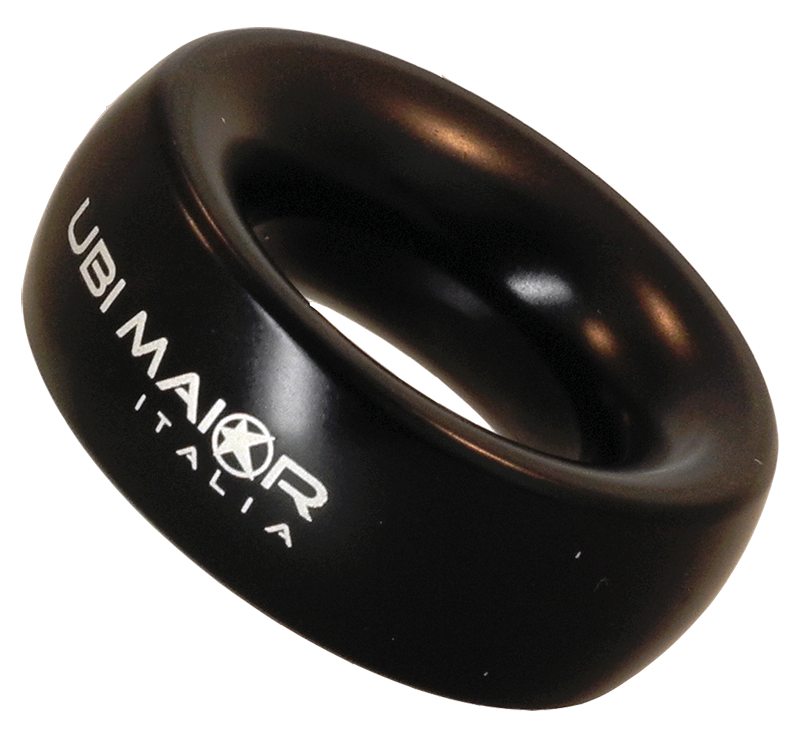

AB16.32
D1: 65mm
D2: 90mm
T: 20mm
MAX WORKING LOAD: 6000Kg
BREAKING LOAD: 12000Kg
WEIGHT: 390g
Description: barber ring/aluminum
AB24.45
D1: 16mm
D2: 32mm
T: 10mm
MAX WORKING LOAD: 800Kg
BREAKING LOAD: 1600Kg
WEIGHT: 13g
Description: barber ring/aluminum
AB40.60-x
D1: 24mm
D2: 45mm
T: 15mm
MAX WORKING LOAD: 1200Kg
BREAKING LOAD: 2400Kg
WEIGHT: 40g
Description: barber ring/stainless steel
AB45.68-x
D1: 40mm
D2: 60mm
T: 14mm
MAX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 170g
Description: barber ring/stainless steel
AB50.80-x
D1: 45mm
D2: 68mm
T: 14mm
MAX WORKING LOAD: 7600Kg
BREAKING LOAD: 7600Kg
WEIGHT: 200g
Description: barber ring/stainless steel

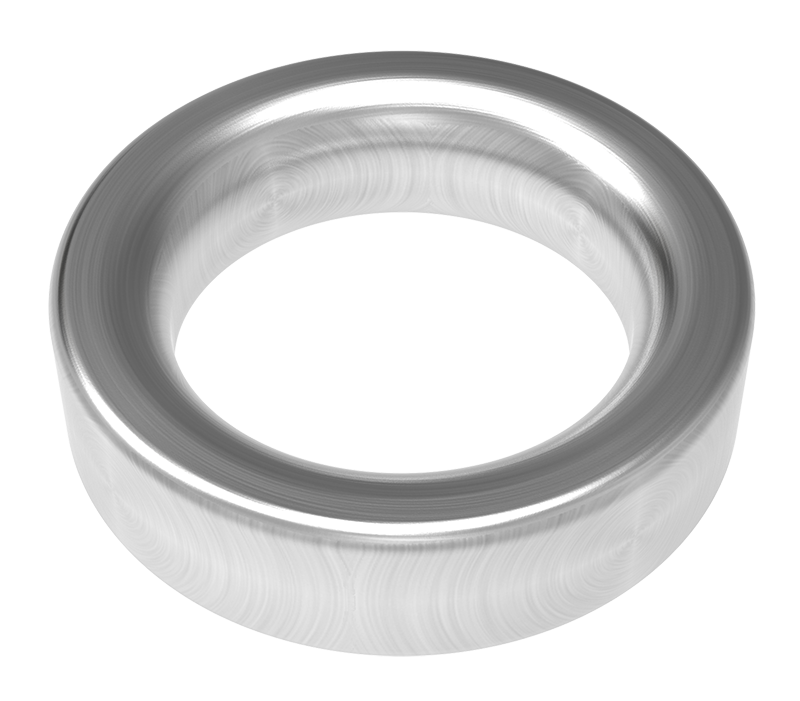

AB65.90-x
D1: 50mm
D2: 80mm
T: 20mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
WEIGHT: 410g
Description: barber ring/stainless steel

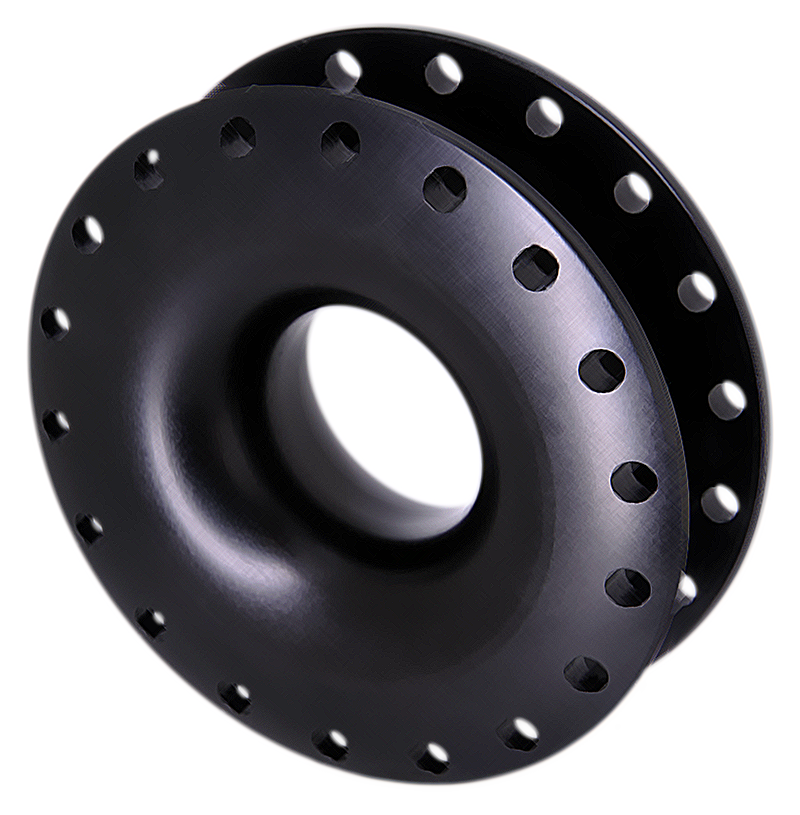

LS20.13
D1: 20mm
D2: 59mm
Ø: 13mm
T: 22mm
MAX WORKING LOAD: 3200Kg
BREAKING LOAD: 6400Kg
WEIGHT: 55g
Description: loop sheave/aluminum
LS26.16
D1: 26mm
D2: 80mm
Ø: 16mm
T: 29mm
MAX WORKING LOAD: 6400Kg
BREAKING LOAD: 12800Kg
WEIGHT: 126g
Description: loop sheave/aluminum

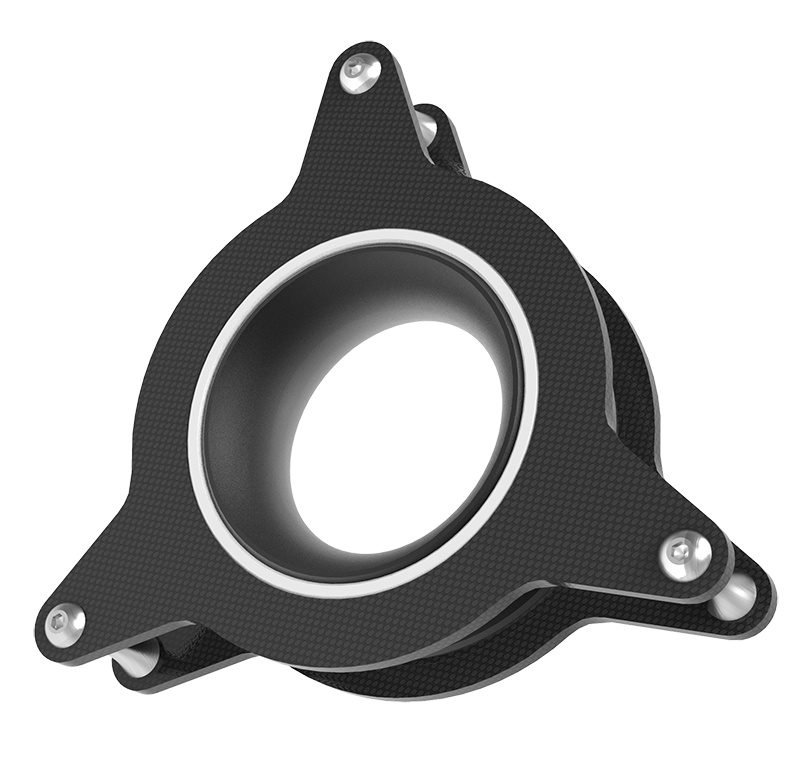

LS50.14
D1: 50mm
D2: 80mm
Ø: 14mm
T: 32mm
MAX WORKING LOAD: 3800Kg
BREAKING LOAD: 7600Kg
WEIGHT: 255g
Description: loop sheave/carbon fiber
Gd8.12
Ø PIN: 8mm
MAX Ø HALYARD: 12mm
J1: 22mm
J2: 20mm
MAX WORKING LOAD: 1600Kg
BREAKING LOAD: 3200Kg
WEIGHT: 60g
Description: 2:1 halyard shackle
Gd10.14
Ø PIN: 10mm
MAX Ø HALYARD: 14mm
J1: 28mm
J2: 24mm
MAX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 93g
Description: 2:1 halyard shackle

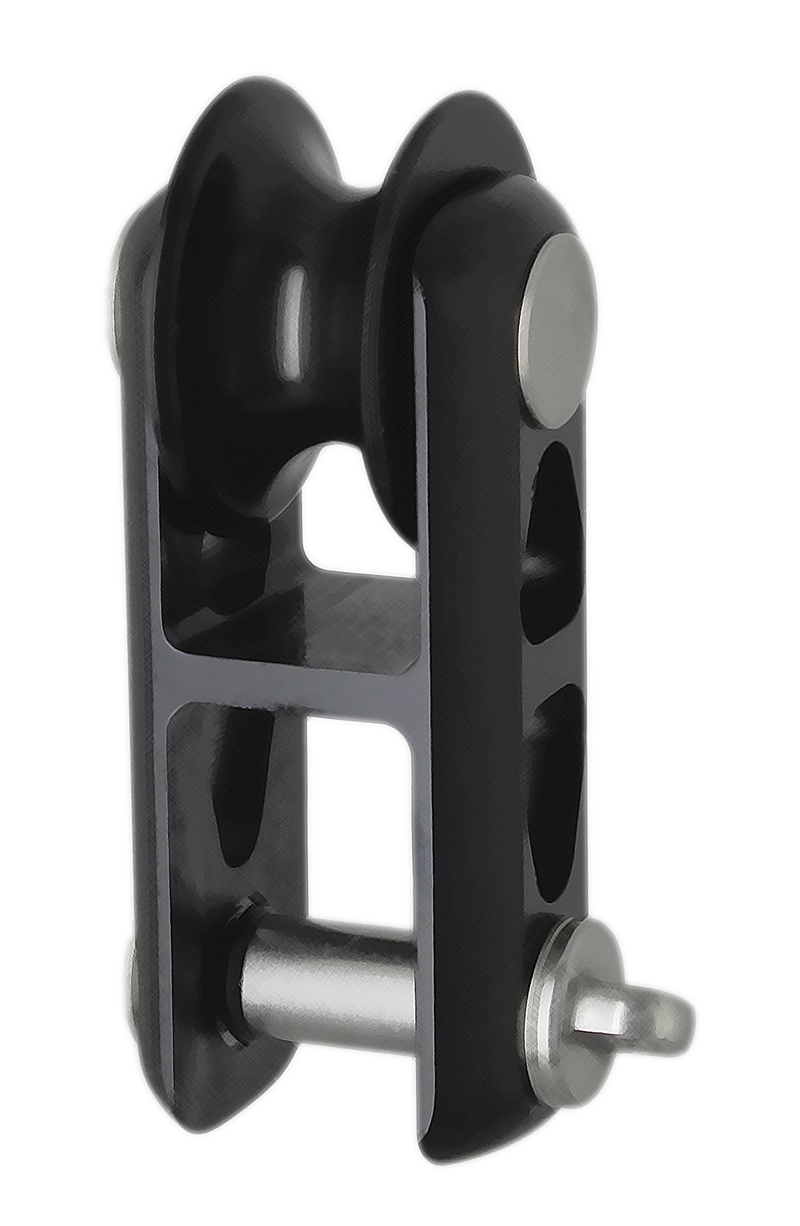

Pd36
Ø PIN: 10mm
Ø A: 36mm
B: 55mm
J1: 37mm
J2: 20mm
MAX WORKING LOAD: 2000Kg
BREAKING LOAD: 4000Kg
WEIGHT: 120g
Description: 2:1 halyard block
Pd46
Ø PIN: 12mm
Ø A: 46mm
B: 70mm
J1: 48mm
J2: 22mm
MAX WORKING LOAD: 3500Kg
BREAKING LOAD: 7000Kg
WEIGHT: 275g
Description: 2:1 halyard block
Pd50
Ø PIN: 14mm
Ø A: 50mm
B: 85mm
J1: 58mm
J2: 22mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
WEIGHT: 380g
Description: 2:1 halyard block

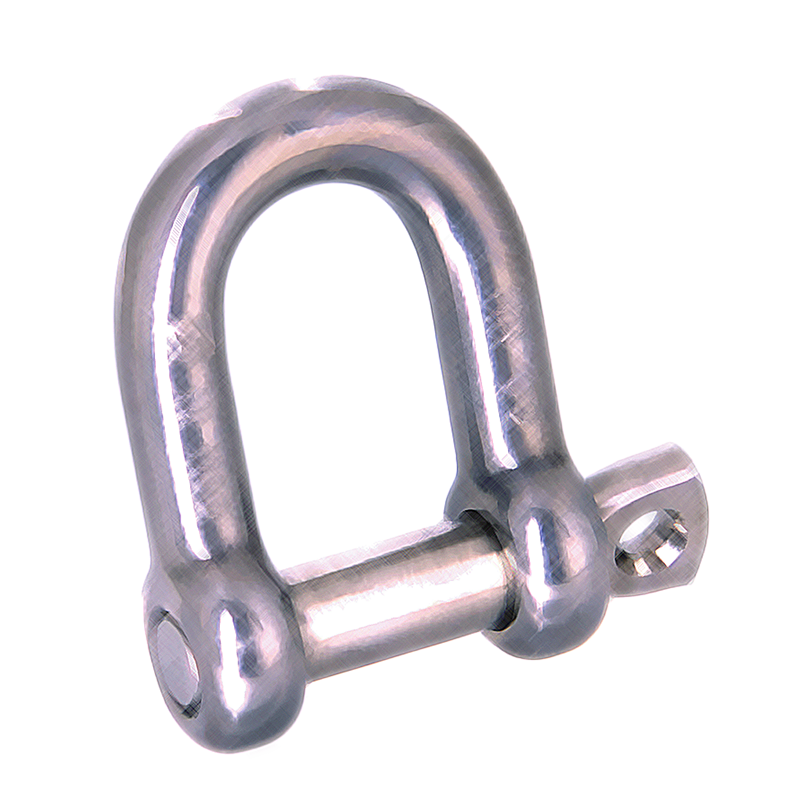

Ghr06
Ø PIN: 6mm
Ø B: 6mm
J1: 23mm
J2: 12mm
BREAKING LOAD: 2700Kg
WEIGHT: 24g
Description: high load shackle/stainless steel
Ghr08
Ø PIN: 8mm
Ø B: 8mm
J1: 30mm
J2: 16mm
BREAKING LOAD: 4400Kg
WEIGHT: 53g
Description: high load shackle/stainless steel
Ghr10
Ø PIN: 10mm
Ø B: 9,5mm
J1: 38mm
J2: 20mm
BREAKING LOAD: 7500Kg
WEIGHT: 97g
Description: high load shackle/stainless steel
Ghr12
Ø PIN: 12mm
Ø B: 12,7mm
J1: 45mm
J2: 24mm
BREAKING LOAD: 10000Kg
WEIGHT: 237g
Description: high load shackle/stainless steel
PA60
Ø SHEAVE: 60mm
Ø SHACKLE: 6mm
MAX Ø LINE: 12mm
MAX WORKING LOAD: 16000Kg
BREAKING LOAD: 3200Kg
LENGTH: 112mm
WEIGHT: 180g
Description: aluminum/delrin/ball bearing/shackle
PA80
Ø SHEAVE: 80mm
Ø SHACKLE: 8mm
MAX Ø LINE: 16mm
MAX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
LENGTH: 145mm
WEIGHT: 390g
Description: aluminum/delrin/ball bearing/shackle

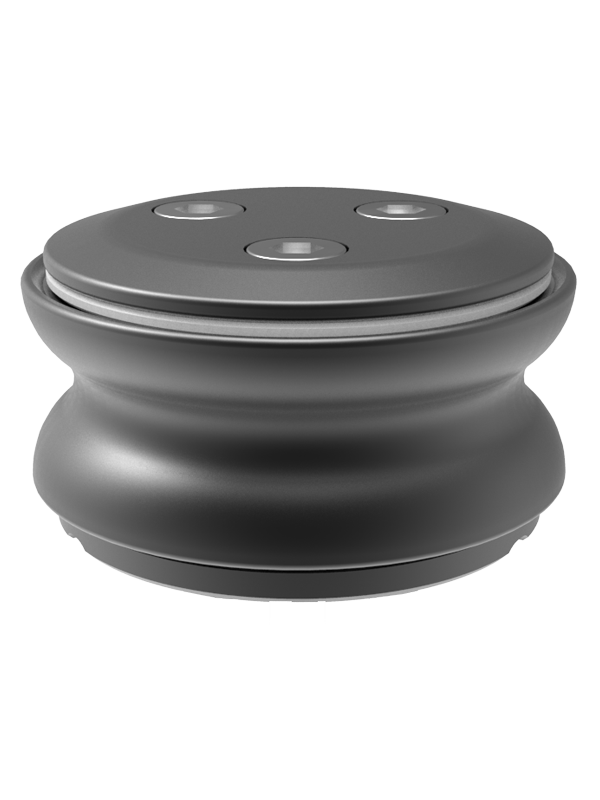

CO60
Ø SHEAVE: 60mm
MAX Ø LINE: 18mm
MAX WORKING LOAD: 2200Kg
BREAKING LOAD: 4400Kg
SCREW: 3xM6
HEIGHT: 72mm
WEIGHT: 340g
Description: aluminum/low friction bushing bearing/high load
CO80
Ø SHEAVE: 80mm
MAX Ø LINE: 24mm
MAX WORKING LOAD: 3500Kg
BREAKING LOAD: 7000Kg
SCREW: 3xM8
HEIGHT: 38mm
WEIGHT: 363g
Description: aluminum/low friction bushing bearing/high load
CO100
Ø SHEAVE: 100mm
MAX Ø LINE: 35mm
MAX WORKING LOAD: 5200Kg
BREAKING LOAD: 10400Kg
SCREW: 3xM12
HEIGHT: 50mm
WEIGHT: 450g
Description: aluminum/low friction bushing bearing/high load

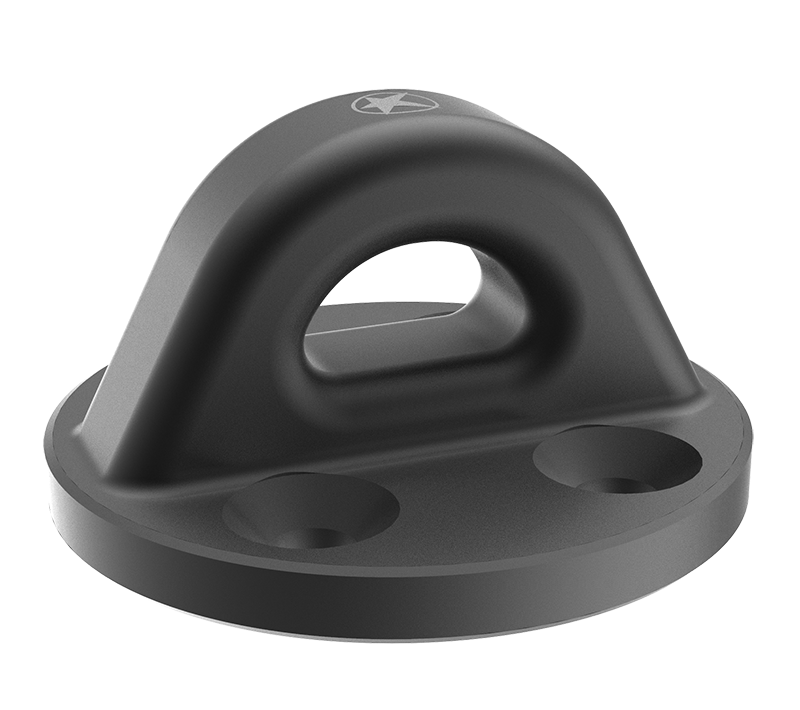

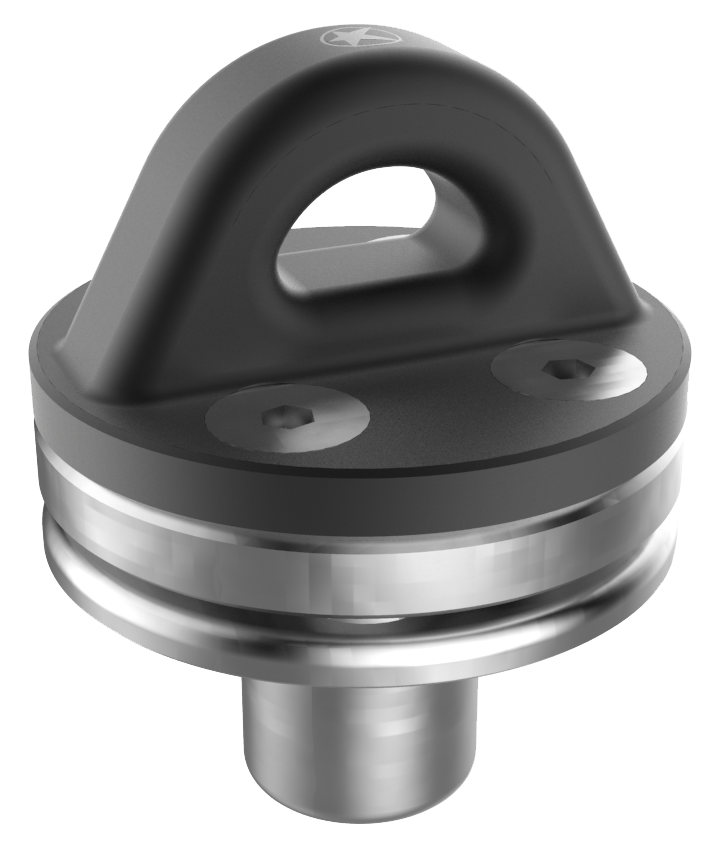

HPD3t
MAX WORKING LOAD: 3000Kg
PAD EYE Ø: 58mm
TOTAL HEIGHT: 34mm
WEIGHT: 70g
Description: aluminum/high load
HPD5t
MAX WORKING LOAD: 5000Kg
PAD EYE Ø: 76mm
TOTAL HEIGHT: 42mm
WEIGHT: 160g
Description: aluminum/high load
HPD7t
MAX WORKING LOAD: 7000Kg
PAD EYE Ø: 96mm
TOTAL HEIGHT: 48mm
WEIGHT: 280g
Description: aluminum/high load
HPD10t
MAX WORKING LOAD: 10000Kg
PAD EYE Ø: 110mm
TOTAL HEIGHT: 61mm
WEIGHT: 509g
Description: aluminum/high load
HPD3t-B
MAX WORKING LOAD: 3000Kg
PAD EYE Ø: 58mm
TOTAL HEIGHT: 35mm
WEIGHT: 143g
Description: stainless steel/high load
HPD5t-B
MAX WORKING LOAD: 5000Kg
PAD EYE Ø: 76mm
TOTAL HEIGHT: 43mm
WEIGHT: 328g
Description: stainless steel/high load
HPD7t-B
MAX WORKING LOAD: 7000Kg
PAD EYE Ø: 96mm
TOTAL HEIGHT: 45mm
WEIGHT: 578g
Description: stainless steel/high load
HPD10t-B
MAX WORKING LOAD: 10000Kg
PAD EYE Ø: 110mm
TOTAL HEIGHT: 45mm
WEIGHT: 1042g
Description: stainless steel/high load
HPD3t-M
MAX WORKING LOAD: 3000Kg
PAD EYE Ø: 58mm
TOTAL HEIGHT: 77mm
WEIGHT: 392g
Description: aluminum/stainless steel/high load
HPD5t-M
MAX WORKING LOAD: 5000Kg
PAD EYE Ø: 76mm
TOTAL HEIGHT: 94mm
WEIGHT: 900g
Description: aluminum/stainless steel/high load
HPD7t-M
MAX WORKING LOAD: 7000Kg
PAD EYE Ø: 96mm
TOTAL HEIGHT: 102mm
WEIGHT: 1420g
Description: aluminum/stainless steel/high load
HPD10t-M
MAX WORKING LOAD: 10000Kg
PAD EYE Ø: 110mm
TOTAL HEIGHT: 124mm
WEIGHT: 2546g
Description: aluminum/stainless steel/high load
SPD1t
MAX WORKING LOAD: 1000Kg
Ø LOOP: 7mm
DECK THICKNESS: 20-30mm
WEIGHT: 52g
Description: aluminum/soft/high load
SPD3t
MAX WORKING LOAD: 3000Kg
Ø LOOP: 9mm
DECK THICKNESS: 20-30mm
WEIGHT: 67g
Description: aluminum/soft/high load
SPD5t
MAX WORKING LOAD: 5000Kg
Ø LOOP: 13mm
DECK THICKNESS: 20-40mm
WEIGHT: 95g
Description: aluminum/soft/high load
SPD8t
MAX WORKING LOAD: 8000Kg
Ø LOOP: 14mm
DECK THICKNESS: 40-60mm
WEIGHT: 150g
Description: aluminum/soft/high load
SPD12t
MAX WORKING LOAD: 12000Kg
Ø LOOP: 16mm
DECK THICKNESS: 40-60mm
WEIGHT: 220g
Description: aluminum/soft/high load

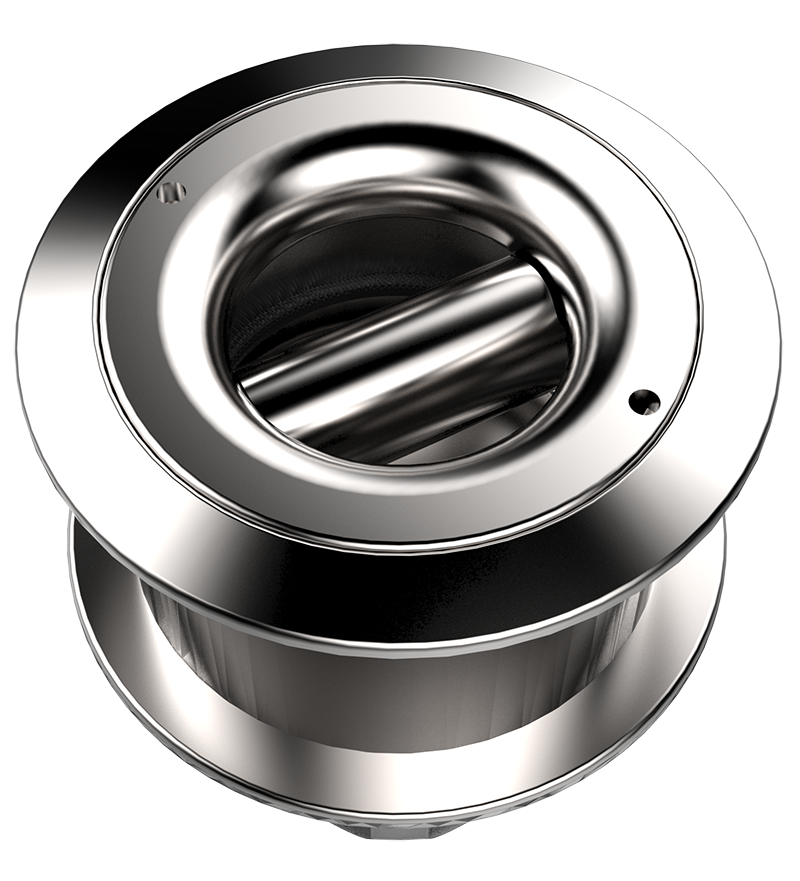

FPD3t-x
Typology: Flush Deck Padeye
MAX WORKING LOAD: 3000Kg
Ø PIN: 14mm
DECK THICKNESS: 20-30mm
WEIGHT: 630g
Description: stainless steel/high load/orientable
FPD5t-x
Typology: Flush Deck Padeye
MAX WORKING LOAD: 5000Kg
Ø PIN: 16mm
DECK THICKNESS: 20-30mm
WEIGHT: 1250g
Description: stainless steel/high load/orientable
FPD7t-x
Typology: Flush Deck Padeye
MAX WORKING LOAD: 7000Kg
Ø PIN: 20mm
DECK THICKNESS: 30-60mm
WEIGHT: 1650g
Description: stainless steel/high load/orientable
FPD10t-x
Typology: Flush Deck Padeye
MAX WORKING LOAD: 10000Kg
Ø PIN: 24mm
DECK THICKNESS: on demand
WEIGHT: on demand
Description: stainless steel/high load/orientable
FPD13t-x
Typology: Flush Deck Padeye
MAX WORKING LOAD: 13000Kg
Ø PIN: 26mm
DECK THICKNESS: on demand
WEIGHT: on demand
Description: stainless steel/high load/orientable

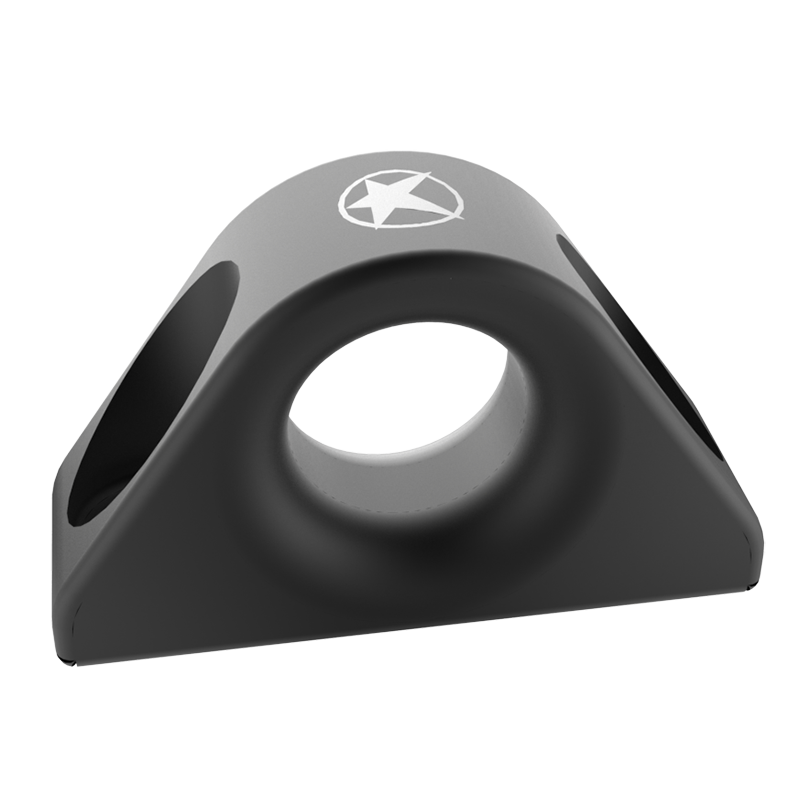

ORF12
NUMBER OF HOLES: 1
Ø HOLE: 12mm
MAX Ø LINE: 10mm
A: 37mm
B: 12mm
SCREW: 2xM5
MAX WORKING LOAD: 500Kg
WEIGHT: 30g
Description: organiser/fairlead/single
ORF14
NUMBER OF HOLES: 1
Ø HOLE: 14mm
MAX Ø LINE: 12mm
A: 52mm
B: 20mm
SCREW: 2xM8
MAX WORKING LOAD: 1000Kg
WEIGHT: 35g
Description: organiser/fairlead/single

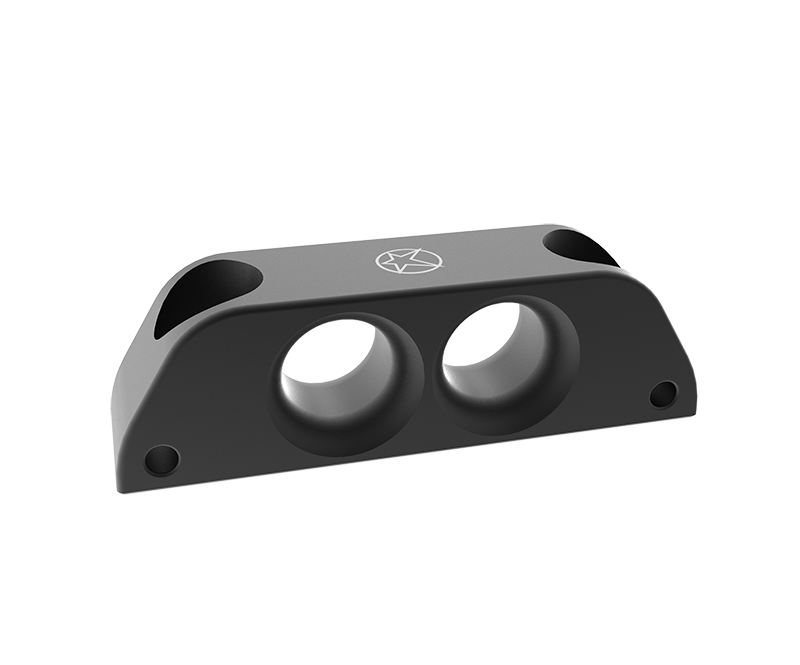

OR2F14
NUMBER OF HOLES: 2
Ø HOLE: 14mm
MAX Ø LINE: 12mm
A: 82mm
B: 20mm
SCREW: 2xM8
MAX WORKING LOAD: 1500Kg
WEIGHT: 52g
Description: organiser/fairlead/multiple

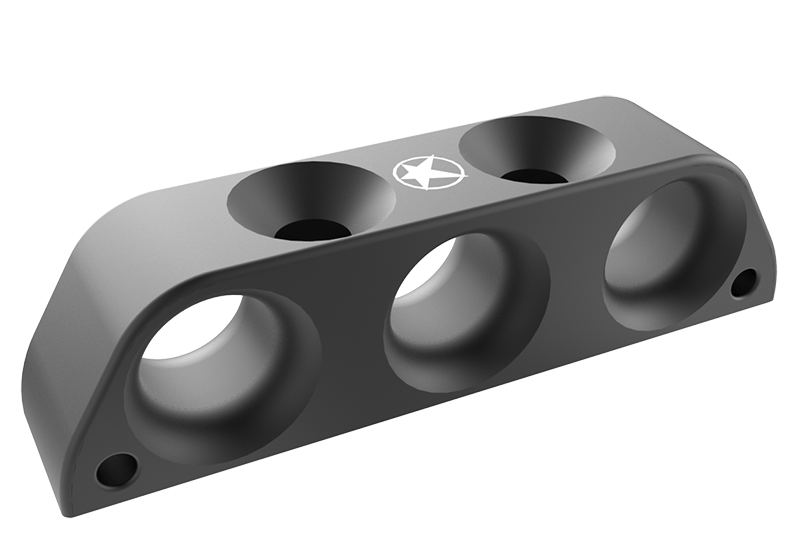

OR3F14
NUMBER OF HOLES: 3
Ø HOLE: 14mm
MAX Ø LINE: 12mm
A: 92mm
B: 20mm
SCREW: 2xM8
MAX WORKING LOAD: 1500Kg
WEIGHT: 65g
Description: organiser/fairlead/multiple

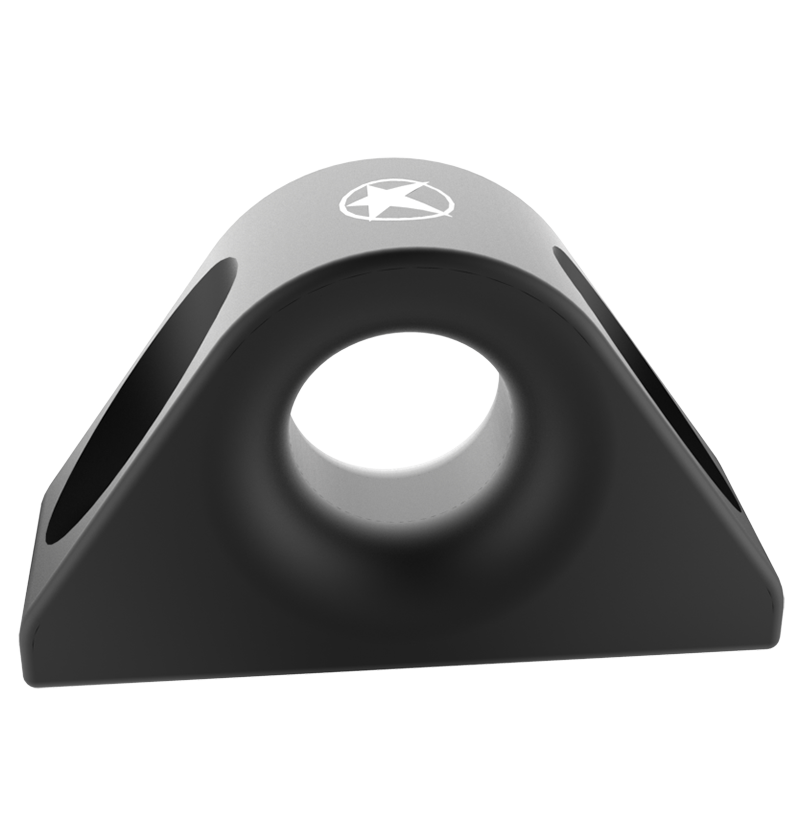

ORF20
NUMBER OF HOLES: 1
Ø HOLE: 20mm
MAX Ø LINE: 18mm
A: 57mm
B: 20mm
SCREW: 2xM8
MAX WORKING LOAD: 1500Kg
WEIGHT: 44g
Description: organiser/fairlead/single
OR2F20
NUMBER OF HOLES: 2
Ø HOLE: 20mm
MAX Ø LINE: 18mm
A: 100mm
B: 20mm
SCREW: 2xM10
MAX WORKING LOAD: 2500Kg
WEIGHT: 70g
Description: organiser/fairlead/multiple
OR3F20
NUMBER OF HOLES: 3
Ø HOLE: 20mm
MAX Ø LINE: 18mm
A: 120mm
B: 20mm
SCREW: 2xM10
MAX WORKING LOAD: 2500Kg
WEIGHT: 86g
Description: organiser/fairlead/multiple

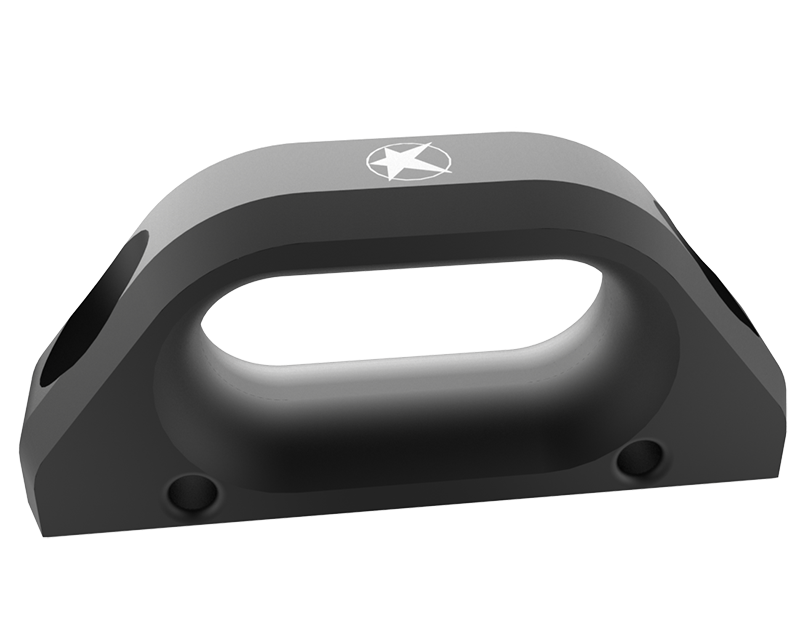

ORF15.37
J1: 15mm
J2: 37mm
MAX Ø LINE: 12mm
A: 70mm
B: 20mm
SCREW: 2xM6
MAX WORKING LOAD: 800Kg
WEIGHT: 46g
Description: organiser/fairlead/wide
ORF15.37-asy
J1: 15mm
J2: 37mm
MAX Ø LINE: 12mm
A: 92mm
B: 20mm
SCREW: 2xM6
MAX WORKING LOAD: 800Kg
WEIGHT: 68g
Description: organiser/fairlead/wide/asymmetric

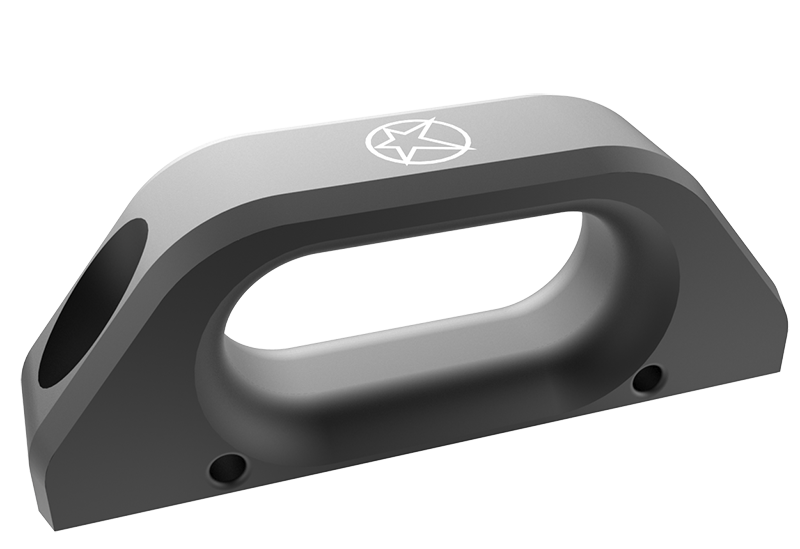

ORF26.62
J1: 26mm
J2: 62mm
MAX Ø LINE: 22mm
A: 120mm
B: 30mm
SCREW: 2xM10
MAX WORKING LOAD: 2500Kg
WEIGHT: 178g
Description: organiser/fairlead/wide

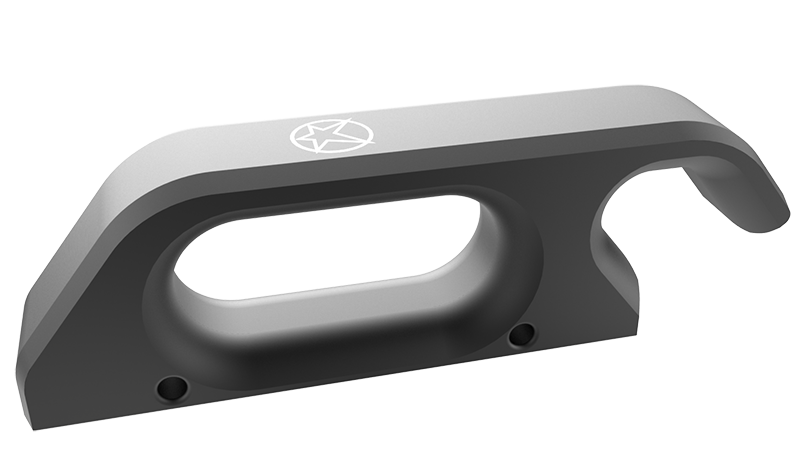

ORF26.62-asy
J1: 26mm
J2: 62mm
MAX Ø LINE: 22mm
A: 152mm
B: 30mm
SCREW: 2xM10
MAX WORKING LOAD: 2500Kg
WEIGHT: 250g
Description: organiser/fairlead/wide/asymmetric

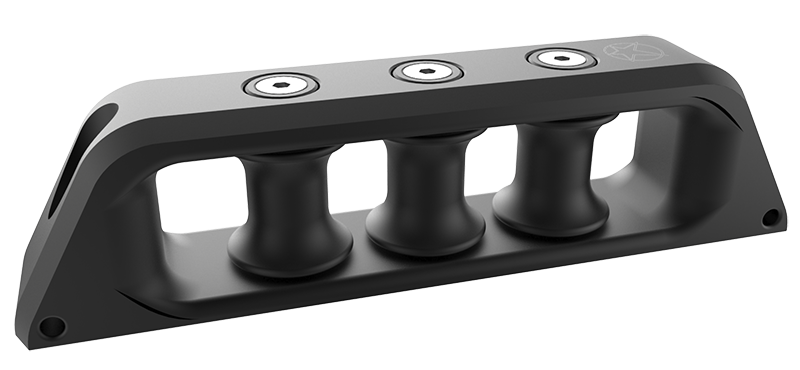

OR3M22
NUMBER OF SHEAVES: 3
SHEAVE: 22mm
A: 204mm
B: 39mm
C: 49mm
MX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
WEIGHT: 615g
Description: organiser/high load

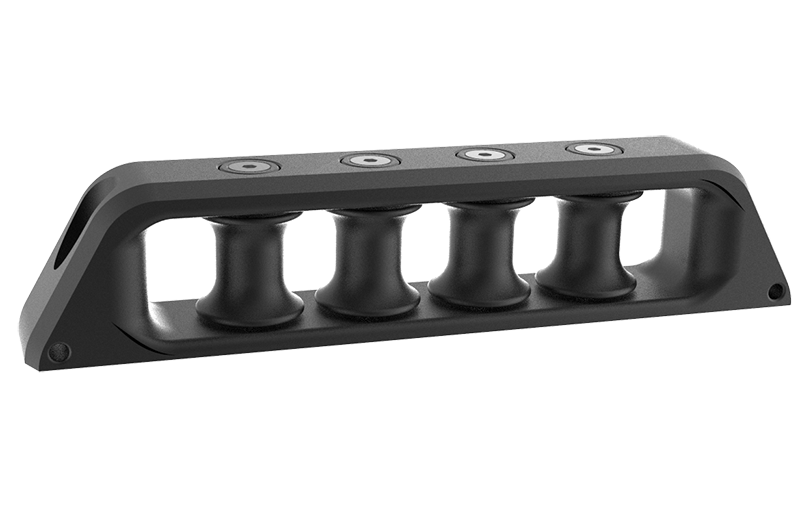

OR4M22
NUMBER OF SHEAVES: 4
SHEAVE: 22mm
A: 240mm
B: 39mm
C: 49mm
MX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
WEIGHT: 724g
Description: organiser/high load

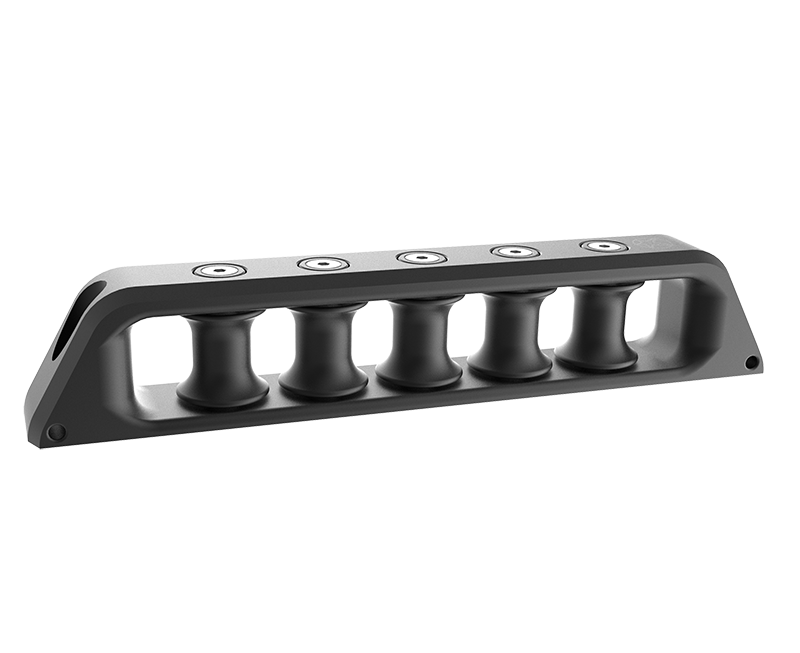

OR5M22
NUMBER OF SHEAVES: 5
SHEAVE: 22mm
A: 276mm
B: 39mm
C: 49mm
MX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
WEIGHT: 832g
Description: organiser/high load

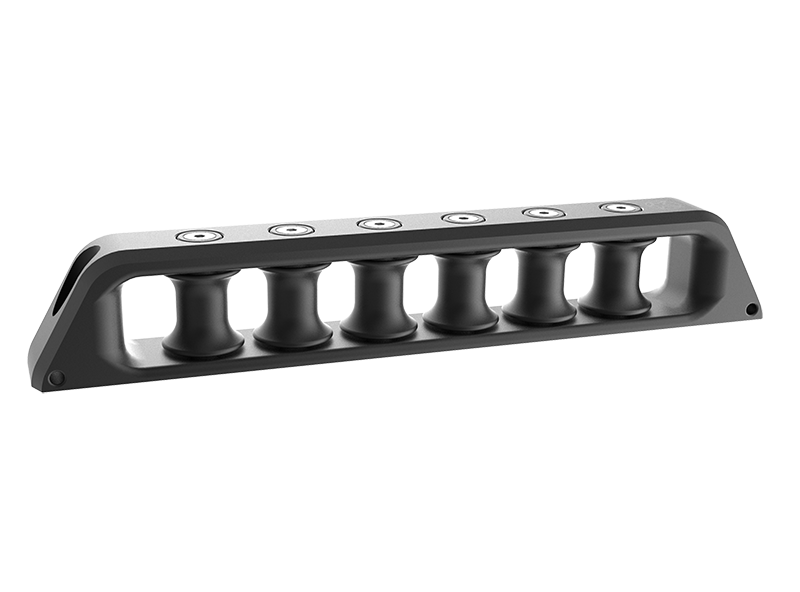

OR6M22
NUMBER OF SHEAVES: 6
SHEAVE: 22mm
A: 312mm
B: 39mm
C: 49mm
MX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
WEIGHT: 940g
Description: organiser/high load

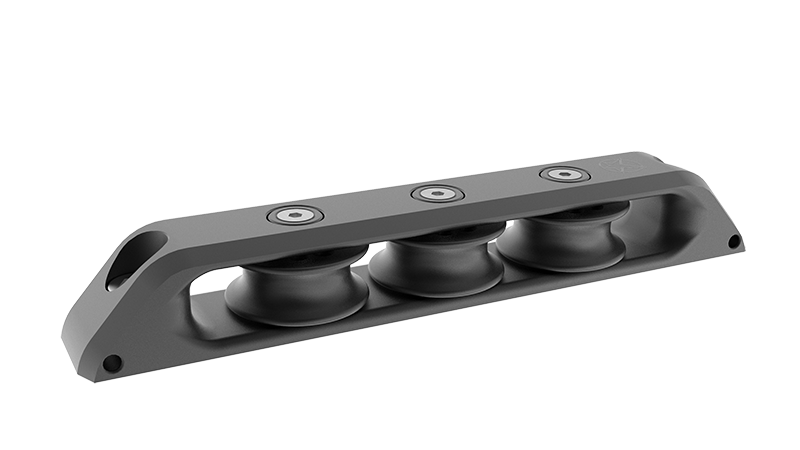

OR3M35
NUMBER OF SHEAVES: 3
SHEAVE: 35mm
A: 244mm
B: 39mm
C: 33mm
MX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 547g
Description: organiser/high load

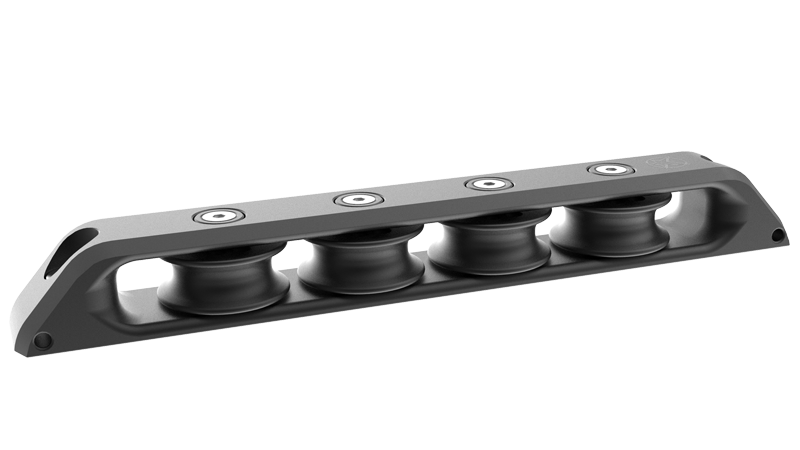

OR4M35
NUMBER OF SHEAVES: 4
SHEAVE: 35mm
A: 294mm
B: 39mm
C: 33mm
MX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 660g
Description: organiser/high load

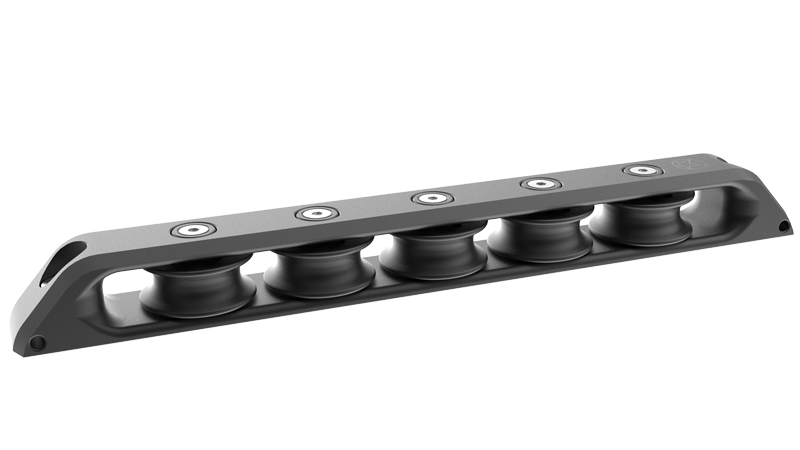

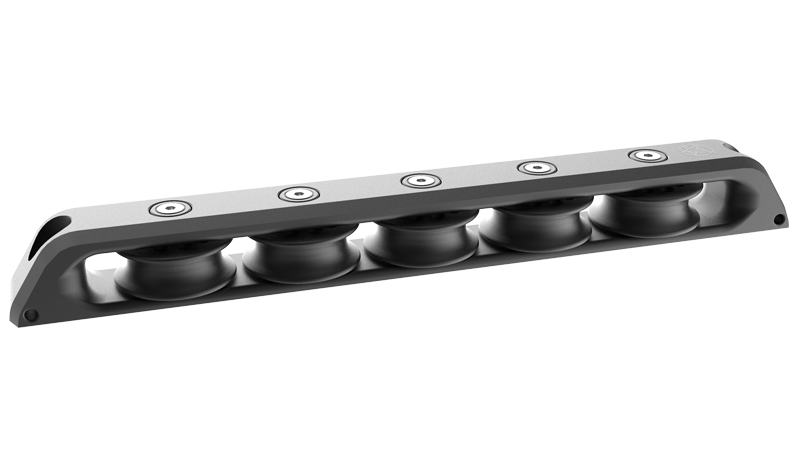

OR5M35
NUMBER OF SHEAVES: 5
SHEAVE: 35mm
A: 344mm
B: 39mm
C: 33mm
MX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 772g
Description: organiser/high load

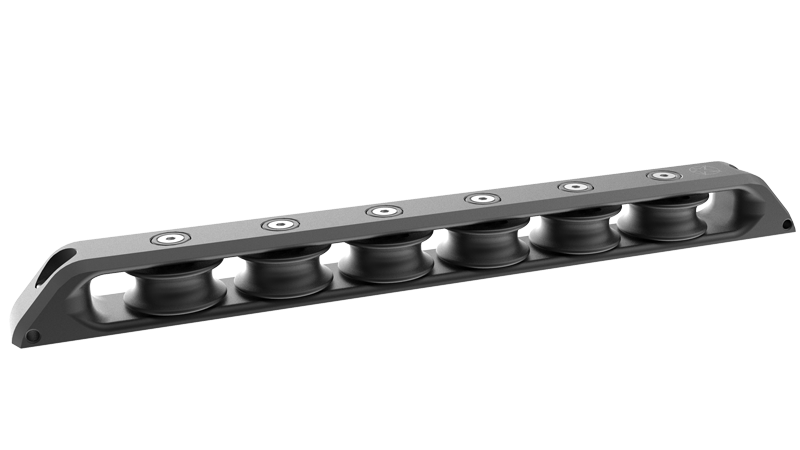

OR6M35
NUMBER OF SHEAVES: 6
SHEAVE: 35mm
A: 394mm
B: 39mm
C: 33mm
MX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 884g
Description: organiser/high load

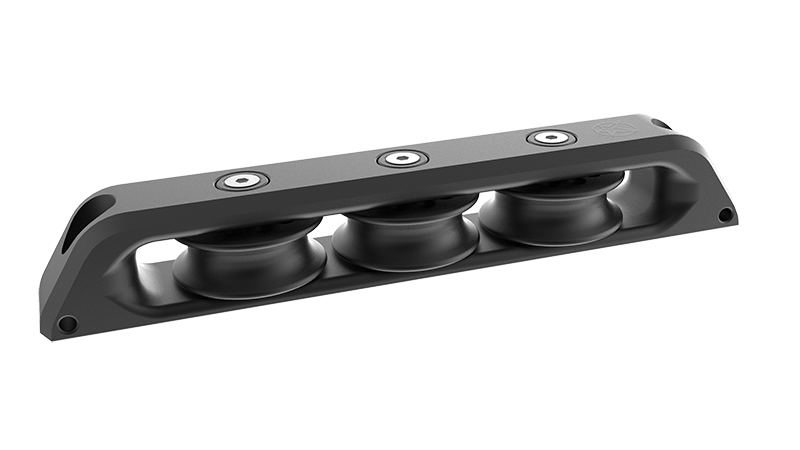

OR3M55
NUMBER OF SHEAVES: 3
SHEAVE: 55mm
A: 182mm
B: 55mm
C: 33mm
MX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 627g
Description: organiser/high load
OR4M55
NUMBER OF SHEAVES: 4
SHEAVE: 55mm
A: 304mm
B: 55mm
C: 33mm
MX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 740g
Description: organiser/high load
OR5M55
NUMBER OF SHEAVES: 5
SHEAVE: 55mm
A: 312mm
B: 55mm
C: 33mm
MX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 852g
Description: organiser/high load

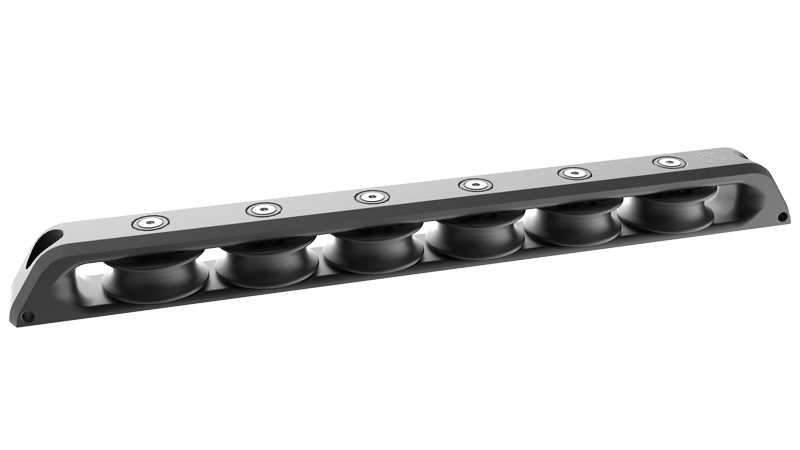

OR6M55
NUMBER OF SHEAVES: 6
SHEAVE: 55mm
A: 377mm
B: 55mm
C: 33mm
MX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 964g
Description: organiser/high load

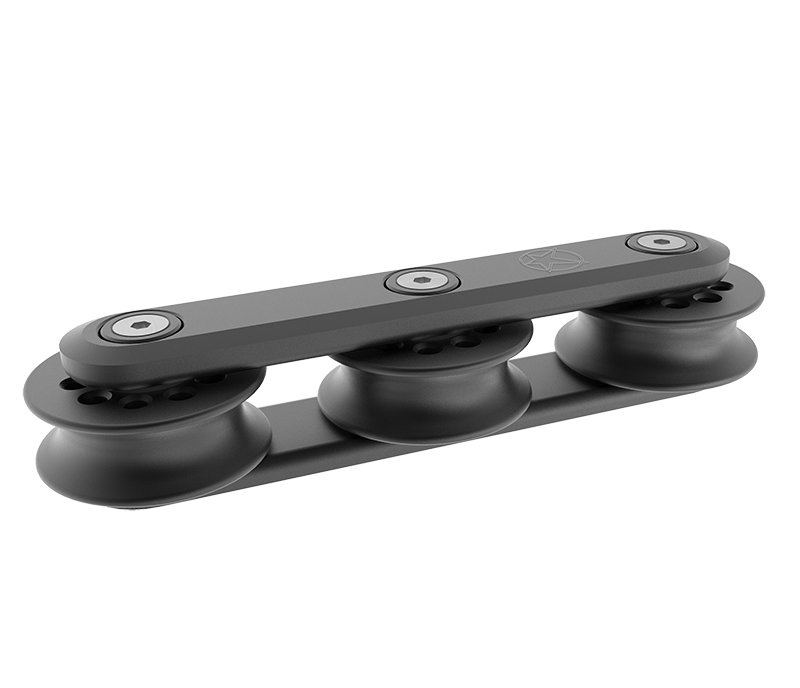

OR3M55L
NUMBER OF SHEAVES: 3
SHEAVE: 55mm
A: 334mm
B: 55mm
C: 36mm
MX WORKING LOAD: 1800Kg
BREAKING LOAD: 3600Kg
WEIGHT: 455g
Description: organiser

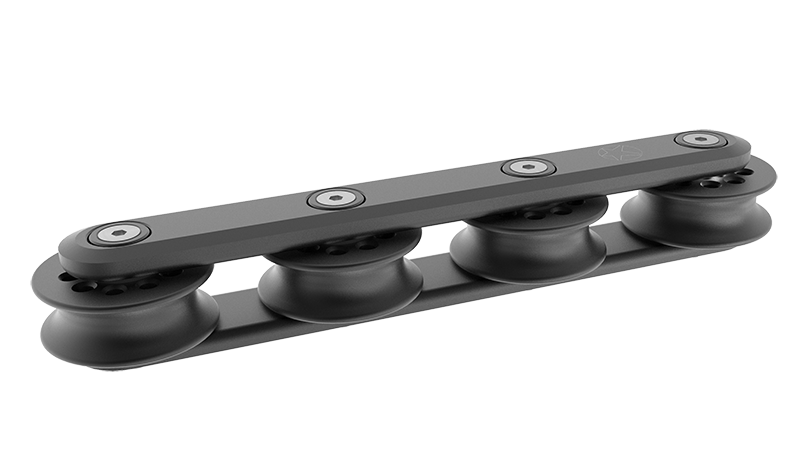

OR4M55L
NUMBER OF SHEAVES: 4
SHEAVE: 55mm
A: 414mm
B: 55mm
C: 36mm
MX WORKING LOAD: 1800Kg
BREAKING LOAD: 3600Kg
WEIGHT: 540g
Description: organiser

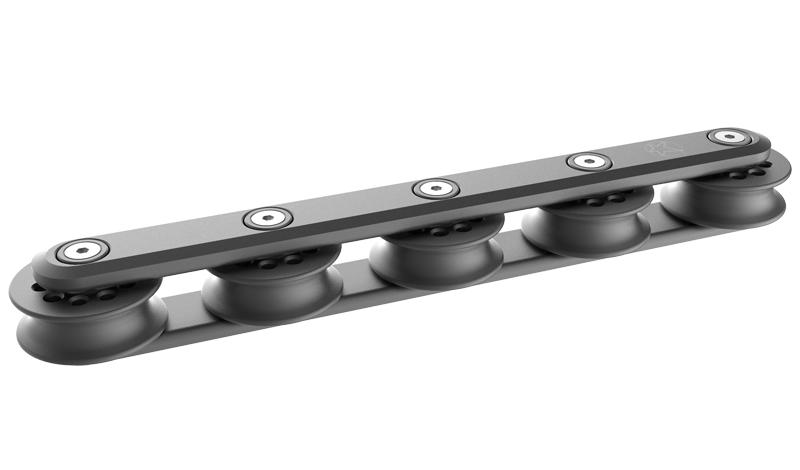

OR5M55L
NUMBER OF SHEAVES: 5
SHEAVE: 55mm
A: 479mm
B: 55mm
C: 36mm
MX WORKING LOAD: 1800Kg
BREAKING LOAD: 3600Kg
WEIGHT: 612g
Description: organiser

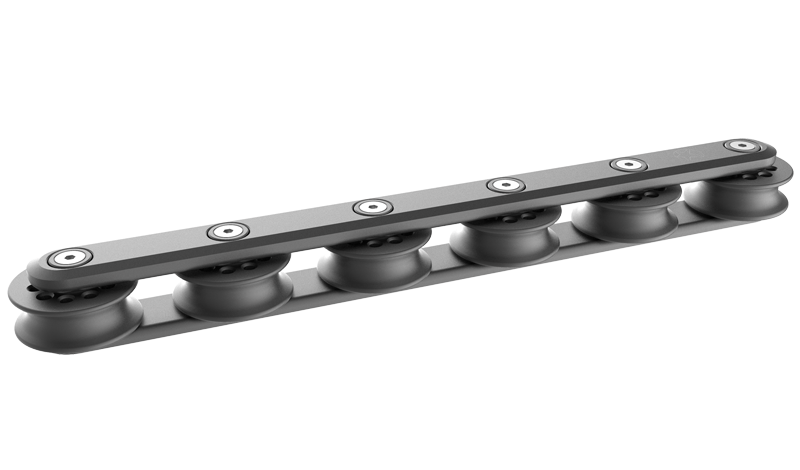

OR6M55L
NUMBER OF SHEAVES: 6
SHEAVE: 55mm
A: 544mm
B: 55mm
C: 36mm
MX WORKING LOAD: 1800Kg
BREAKING LOAD: 3600Kg
WEIGHT: 715g
Description: organiser
