REGATA SHEAVE

The RT SHEAVE is a standard line of high load sheaves for larger boats. The RT SHEAVE line was created based on experience gained by UBI MAIOR ITALIA in high level projects like the America’s Cup, the Vendée Globe and many years of cooperation with a number of prestigious shipyards. These sheaves are made of Aluminum with plain bushing bearings made of technopolymer for both primary and side loads. This tecnology allows to handle heavy loads (even static) and while it is practically maintenance free. Available Standard sizes range from 6T to 18T max working loads. In addition we offer customized and full custom sheave designed and manufactured to the needs and applications of our clients. Creativity is in our DNA.
RT125S
ø SHEAVE: 125mm
MAX ø LINE: 18mm
MAX WORKING LOAD: 6000Kg
BREAKING LOAD: 12000Kg
HEIGHT: 22mm
WEIGHT: 487g
Description: single sheave/aluminum/bushing bearing/high load
RT150S
ø SHEAVE: 150mm
MAX ø LINE: 20mm
MAX WORKING LOAD: 9000Kg
BREAKING LOAD: 18000Kg
HEIGHT: 25mm
WEIGHT: 800g
Description: single sheave/aluminum/bushing bearing/high load
RT175S
ø SHEAVE: 175mm
MAX ø LINE: 24mm
MAX WORKING LOAD: 12000Kg
BREAKING LOAD: 24000Kg
HEIGHT: 28mm
WEIGHT: 1276g
Description: single sheave/aluminum/bushing bearing/high load

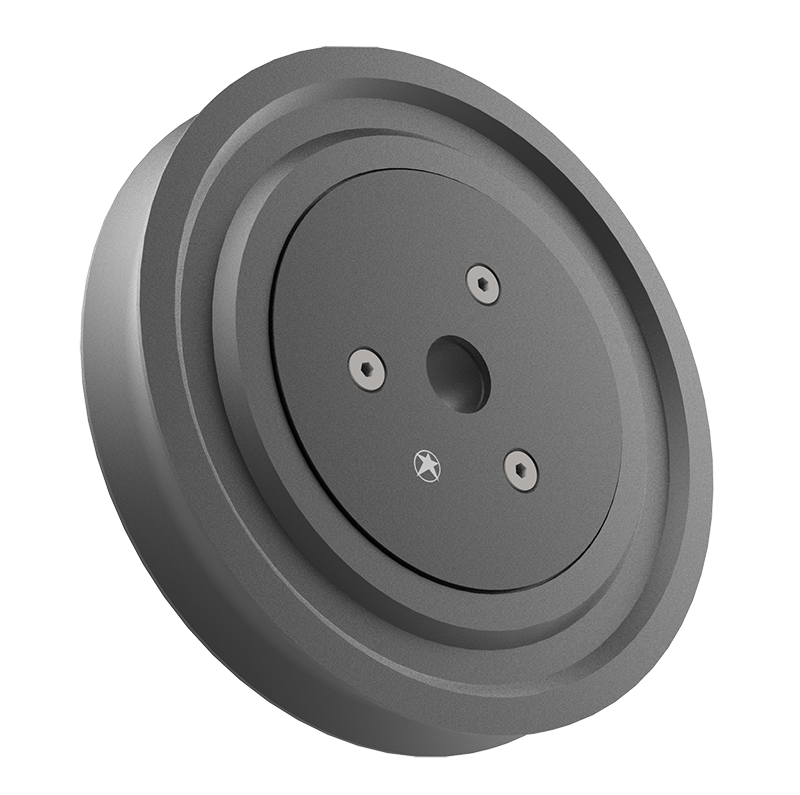

RT200S
ø SHEAVE: 200mm
MAX ø LINE: 28mm
MAX WORKING LOAD: 15000Kg
BREAKING LOAD: 30000Kg
HEIGHT: 32mm
WEIGHT: 1948g
Description: single sheave/aluminum/bushing bearing/high load
RT225S
ø SHEAVE: 225mm
MAX ø LINE: 32mm
MAX WORKING LOAD: 18000Kg
BREAKING LOAD: 36000Kg
HEIGHT: 36mm
WEIGHT: 2815g
Description: single sheave/aluminum/bushing bearing/high load
