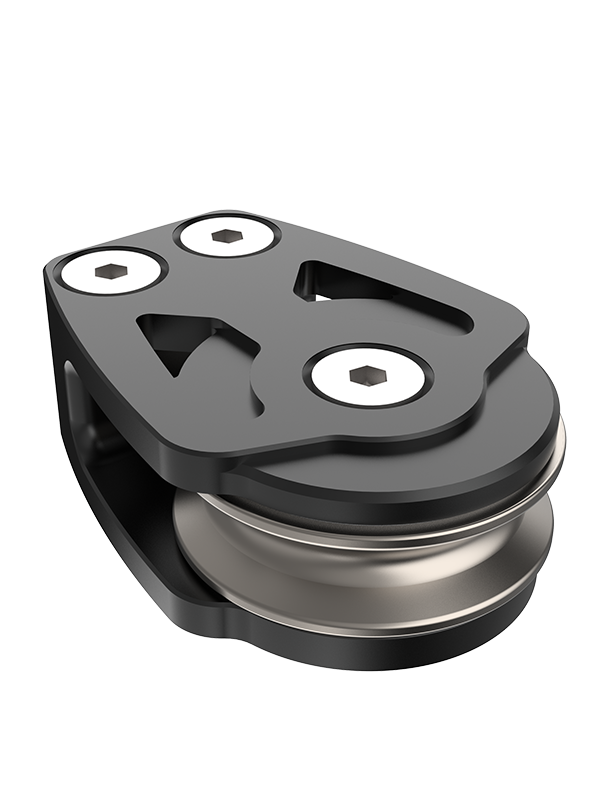

REGATA eVe

The RT EVE REGATA range has been developed to meet the demands of high performance racing boats. EVE blocks are the answer to the neverending quest for high load and low weight blocks required by the most demanding professional racing boats and crews. The materials used for the load-bearing components and the particular shell design minimize weight and dimensions while guaranteeing exceptional performance. In fact, the heart of the EVE block is composed of a hollow shaft, roller bearings and a sheave made of machined grade 5 Titanium alloy. Two sets of Torlon bearing keep the sheave aligned, absorb side loads and minimize friction while the shell is optimized to guarantee an optimum loadpath and minimal weight. A version with an extra wide pulley is available for off-axis line angles. Available in a variety of finishes and custom colors.

Select Filters:

Select Filters:

RT55V
Ø SHEAVE: 55mm
MAX Ø LINE: 12m
MAX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
LENGTH: 77mm
WEIGHT: 160g
Description: single/aluminum/titanium/roller bearing/soft attachment/high load/high performance
RT77V
Ø SHEAVE: 77mm
MAX Ø LINE: 14m
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
LENGTH: 100mm
WEIGHT: 275g
Description: single/aluminum/titanium/roller bearing/soft attachment/high load/high performance
RT77VW
Ø SHEAVE: 77mm
MAX Ø LINE: 14m
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
LENGTH: 100mm
WEIGHT: 330g
Description: single/wide/aluminum/titanium/roller bearing/soft attachment/high load/high performance
RT100V
Ø SHEAVE: 100mm
MAX Ø LINE: 18m
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
LENGTH: 125mm
WEIGHT: 500g
Description: single/aluminum/titanium/roller bearing/soft attachment/high load/high performance
RT100VW
Ø SHEAVE: 100mm
MAX Ø LINE: 18m
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
LENGTH: 125mm
WEIGHT: 590g
Description: single/wide/aluminum/titanium/roller bearing/soft attachment/high load/high performance
RT125V
Ø SHEAVE: 125mm
MAX Ø LINE: 22m
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
LENGTH: 160mm
WEIGHT: 670g
Description: single/aluminum/titanium/roller bearing/soft attachment/high load/high performance
RT125VW
Ø SHEAVE: 125mm
MAX Ø LINE: 22m
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
LENGTH: 160mm
WEIGHT: 780g
Description: single/wide/aluminum/titanium/roller bearing/soft attachment/high load/high performance
RT150V
Ø SHEAVE: 150mm
MAX Ø LINE: 25m
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
LENGTH: 195mm
WEIGHT: 840g
Description: single/aluminum/titanium/roller bearing/soft attachment/high load/high performance
RT150VW
Ø SHEAVE: 150mm
MAX Ø LINE: 15m
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
LENGTH: 195mm
WEIGHT: 960g
Description: single/wide/aluminum/titanium/roller bearing/soft attachment/high load/high performance
RT55VS
Ø SHEAVE: 55mm
MAX Ø LINE: 12mm
MAX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
HEIGHT: 22mm
WEIGHT: 165g
Description: single sheave/titanium/roller bearing/high performance
RT55VS-T
Ø SHEAVE: 55mm
MAX Ø LINE: 12mm
MAX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
HEIGHT: 31mm
WEIGHT: 170g
Description: single sheave/tulip/titanium/roller bearing/high performance
RT77VS
Ø SHEAVE: 77mm
MAX Ø LINE: 14mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
HEIGHT: 22mm
WEIGHT: 275g
Description: single sheave/titanium/roller bearing/high performance
RT77VS-W
Ø SHEAVE: 77mm
MAX Ø LINE: 14mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
HEIGHT: 32mm
WEIGHT: 295g
Description: single sheave/wide/titanium/roller bearing/high performance
RT77VS-T
Ø SHEAVE: 77mm
MAX Ø LINE: 14mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
HEIGHT: 38mm
WEIGHT: 315g
Description: single sheave/tulip/titanium/roller bearing/high performance
RT100VS
Ø SHEAVE: 100mm
MAX Ø LINE: 18mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
HEIGHT: 36mm
WEIGHT: 380g
Description: single sheave/titanium/roller bearing/high performance
RT100VS-W
Ø SHEAVE: 100mm
MAX Ø LINE: 18mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
HEIGHT: 42mm
WEIGHT: 450g
Description: single sheave/wide/titanium/roller bearing/high performance
RT100VS-T
Ø SHEAVE: 100mm
MAX Ø LINE: 18mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
HEIGHT: 38mm
WEIGHT: 392g
Description: single sheave/tulip/titanium/roller bearing/high performance
RT125VS
Ø SHEAVE: 125mm
MAX Ø LINE: 22mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
HEIGHT: 46mm
WEIGHT: 670g
Description: single sheave/titanium/roller bearing/high performance
RT125VS-W
Ø SHEAVE: 125mm
MAX Ø LINE: 22mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
HEIGHT: 52mm
WEIGHT: 805g
Description: single sheave/wide/titanium/roller bearing/high performance
RT125VS-T
Ø SHEAVE: 125mm
MAX Ø LINE: 22mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
HEIGHT: 50mm
WEIGHT: 612g
Description: single sheave/tulip/titanium/roller bearing/high performance
RT150VS
Ø SHEAVE: 150mm
MAX Ø LINE: 25mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
HEIGHT: 56mm
WEIGHT: 820g
Description: single sheave/titanium/roller bearing/high performance
RT150VS-W
Ø SHEAVE: 150mm
MAX Ø LINE: 25mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
HEIGHT: 62mm
WEIGHT: 850g
Description: single sheave/wide/titanium/roller bearing/high performance
RT150VS-T
Ø SHEAVE: 150mm
MAX Ø LINE: 25mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
HEIGHT: 55mm
WEIGHT: 701g
Description: single sheave/tulip/titanium/roller bearing/high performance

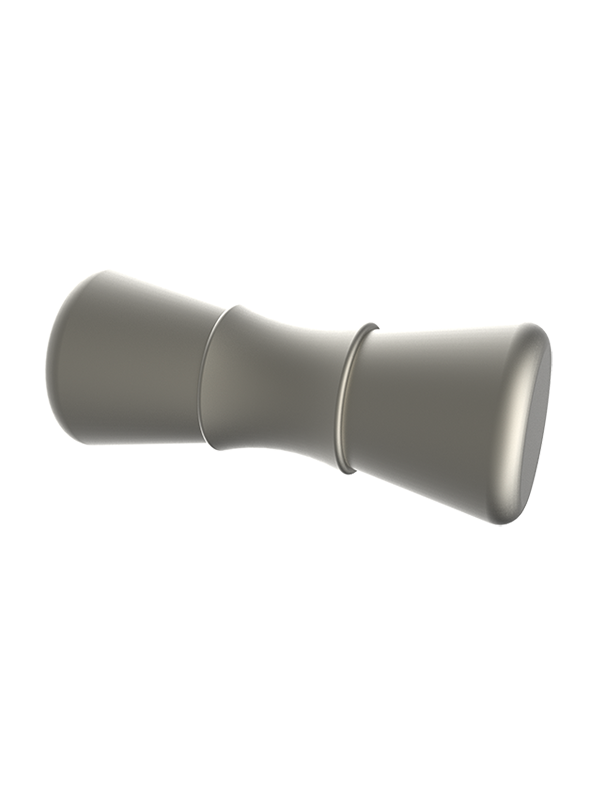

TB-3206-tn
A: 32mm
B: 8mm
Ø1: 8mm
Ø2: 6mm
BREAKING LOAD: 2700Kg
WEIGHT: 6g
Description: t-bone/titaniuml/soft attachment
TB-4508-tn
A: 45mm
B: 10mm
Ø1: 10mm
Ø2: 8mm
BREAKING LOAD: 4300Kg
WEIGHT: 13g
Description: t-bone/titaniuml/soft attachment
TB-5210-tn
A: 52mm
B: 12mm
Ø1: 12mm
Ø2: 10mm
BREAKING LOAD: 6200Kg
WEIGHT: 22g
Description: t-bone/titaniuml/soft attachment
TB-6012-tn
A: 60mm
B: 14mm
Ø1: 14mm
Ø2: 12mm
BREAKING LOAD: 8500Kg
WEIGHT: 34g
Description: t-bone/titaniuml/soft attachment
TB-6814-tn
A: 68mm
B: 16mm
Ø1: 16mm
Ø2: 14mm
BREAKING LOAD: 11100Kg
WEIGHT: 68g
Description: t-bone/titaniuml/soft attachment
TB-8AC-tn
A: 30mm
B: 10mm
Ø1: 11mm
Ø2: 8mm
BREAKING LOAD: 4300Kg
WEIGHT: 9g
Description: t-bone/titanium/soft attachment/AC desing
TB-10AC-tn
A: 37mm
B: 12mm
Ø1: 15mm
Ø2: 10mm
BREAKING LOAD: 6200Kg
WEIGHT: 19g
Description: t-bone/titanium/soft attachment/AC desing
TB-12AC-tn
A: 45mm
B: 14mm
Ø1: 18mm
Ø2: 12mm
BREAKING LOAD: 8500Kg
WEIGHT: 34g
Description: t-bone/titanium/soft attachment/AC desing
TB-14AC-tn
A: 52mm
B: 16mm
Ø1: 21mm
Ø2: 14mm
BREAKING LOAD: 11100Kg
WEIGHT: 53g
Description: t-bone/titanium/soft attachment/AC desing
TB-16AC-tn
A: 60mm
B: 18mm
Ø1: 24mm
Ø2: 16mm
BREAKING LOAD: 15000Kg
WEIGHT: 62g
Description: t-bone/titanium/soft attachment/AC desing
