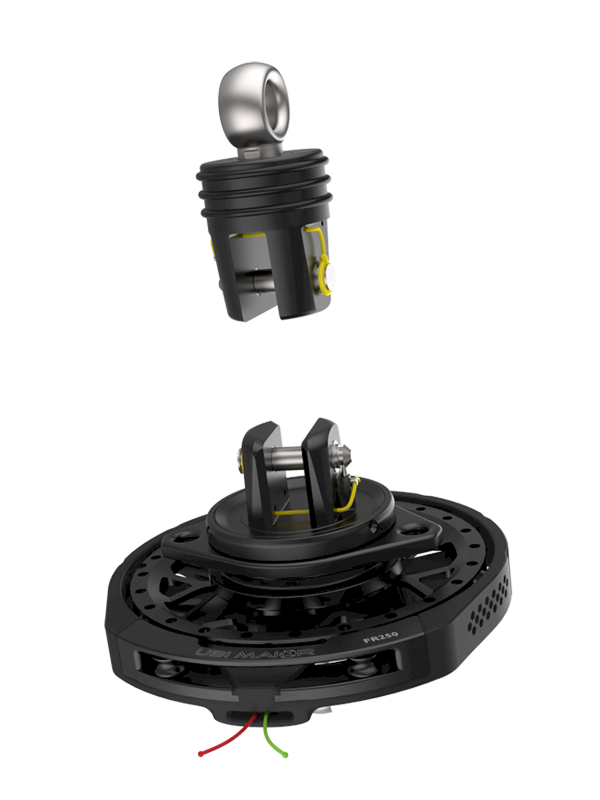

FURLERS

FR FURLERS are extremely reliable and functional for managing bow sails, both code zero and gennaker. This complete line ranges from products suited to dinghy and smaller vessels, right up to larger units and custom designed products and comes in two versions: with fixed tack (code zero, genoa, etc) and with free tack to wind gennakers whitout luff. The drum and head are machined from a single piece of aluminum 6082T6 and contain cylindrical roller thrust bearings featuring the best characteristics for this use.

Select Filters:

Select Filters:

FR87L
BOAT SIZE: <18ft
Ø ROLLER DRUM: 87mm
FURLER TYPE: classic
Ø PIN: 6mm
MAX Ø FURLING LINE: 6mm
MAX WORKING LOAD: 500Kg
BREAKING LOAD: 1000Kg
WEIGHT: 420g
Description: aluminum/stainless steel/code zero/shackle/low load
FR87
BOAT SIZE: 18-26ft
Ø ROLLER DRUM: 87mm
FURLER TYPE: classic
Ø PIN: 6mm
MAX Ø FURLING LINE: 6mm
MAX WORKING LOAD: 750Kg
BREAKING LOAD: 1500Kg
WEIGHT: 575g
Description: aluminum/stainless steel/code zero/shackle

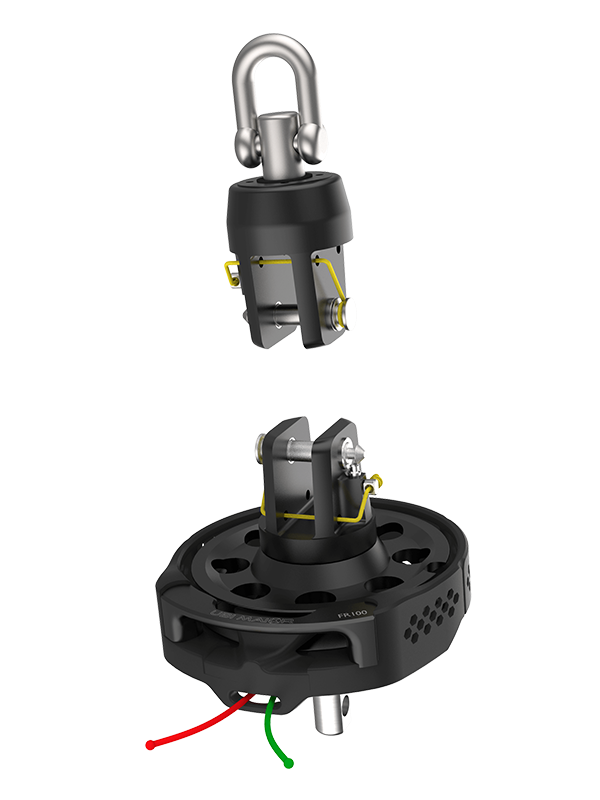

FR100
BOAT SIZE: 26-36ft
Ø ROLLER DRUM: 100mm
FURLER TYPE: classic
Ø PIN: 8mm
MAX Ø FURLING LINE: 8mm
MAX WORKING LOAD: 1500Kg
BREAKING LOAD: 3000Kg
WEIGHT: 820g
Description: aluminum/stainless steel/code zero/shackle
FR100m
BOAT SIZE: 26-36ft
Ø ROLLER DRUM: 100mm
FURLER TYPE: free tack
Ø PIN: 8mm
MAX Ø FURLING LINE: 8mm
MAX WORKING LOAD: 1500Kg
BREAKING LOAD: 3000Kg
WEIGHT: 880g
Description: aluminum/stainless steel/gennaker/shackle
FR100RW
BOAT SIZE: 26-36ft
Ø ROLLER DRUM: 100mm
FURLER TYPE: rewind
Ø PIN: 8mm
MAX Ø FURLING LINE: 8mm
MAX WORKING LOAD: 1500Kg
BREAKING LOAD: 3000Kg
WEIGHT: 1020g
Description: aluminum/stainless steel/code zero/shackle
FR100RWm
BOAT SIZE: 26-36ft
Ø ROLLER DRUM: 100mm
FURLER TYPE: rewind/free tack
Ø PIN: 8mm
MAX Ø FURLING LINE: 8mm
MAX WORKING LOAD: 1500Kg
BREAKING LOAD: 3000Kg
WEIGHT: 1080g
Description: aluminum/stainless steel/gennaker/shackle
FR125
BOAT SIZE: 36-42ft
Ø ROLLER DRUM: 125mm
FURLER TYPE: classic
Ø PIN: 10mm
MAX Ø FURLING LINE: 8mm
MAX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
WEIGHT: 1150g
Description: aluminum/stainless steel/code zero/shackle
FR125m
BOAT SIZE: 36-42ft
Ø ROLLER DRUM: 125mm
FURLER TYPE: free tack
Ø PIN: 10mm
MAX Ø FURLING LINE: 8mm
MAX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
WEIGHT: 1230g
Description: aluminum/stainless steel/gennaker/shackle
FR125RW
BOAT SIZE: 36-42ft
Ø ROLLER DRUM: 125mm
FURLER TYPE: rewind
Ø PIN: 10mm
MAX Ø FURLING LINE: 8mm
MAX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
WEIGHT: 1350g
Description: aluminum/stainless steel/code zero/shackle
FR125RWm
BOAT SIZE: 36-42ft
Ø ROLLER DRUM: 125mm
FURLER TYPE: rewind/free tack
Ø PIN: 10mm
MAX Ø FURLING LINE: 8mm
MAX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
WEIGHT: 1680g
Description: aluminum/stainless steel/gennaker/shackle

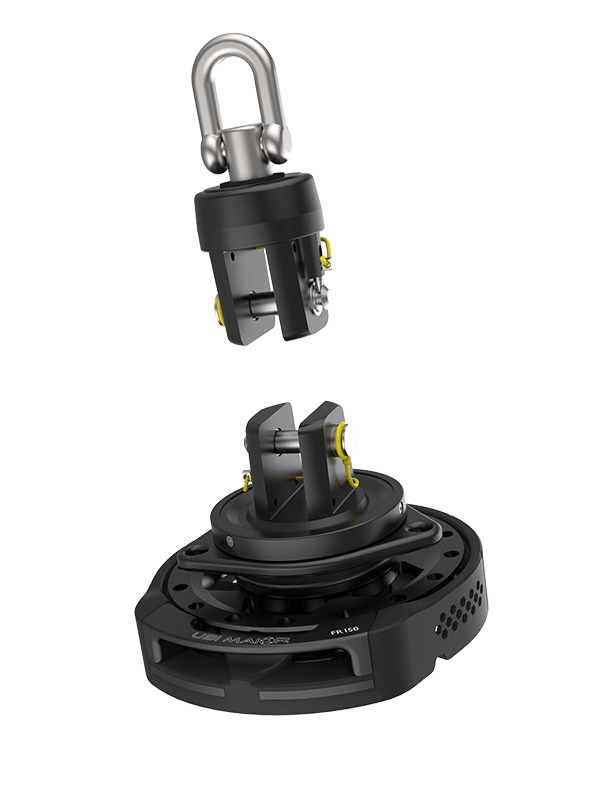

FR150
BOAT SIZE: 42-54ft
Ø ROLLER DRUM: 150mm
FURLER TYPE: classic
Ø PIN: 12mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
WEIGHT: 1400g
Description: aluminum/stainless steel/code zero/shackle
FR150m
BOAT SIZE: 42-54ft
Ø ROLLER DRUM: 150mm
FURLER TYPE: free tack
Ø PIN: 12mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
WEIGHT: 1530g
Description: aluminum/stainless steel/gennaker/shackle/x-bearing
FR150RW
BOAT SIZE: 42-54ft
Ø ROLLER DRUM: 150mm
FURLER TYPE: rewind
Ø PIN: 12mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
WEIGHT: 1600g
Description: aluminum/stainless steel/code zero/shackle
FR150RWm
BOAT SIZE: 42-54ft
Ø ROLLER DRUM: 150mm
FURLER TYPE: rewind/free tack
Ø PIN: 12mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
WEIGHT: 1900g
Description: aluminum/stainless steel/gennaker/shackle/x-bearing

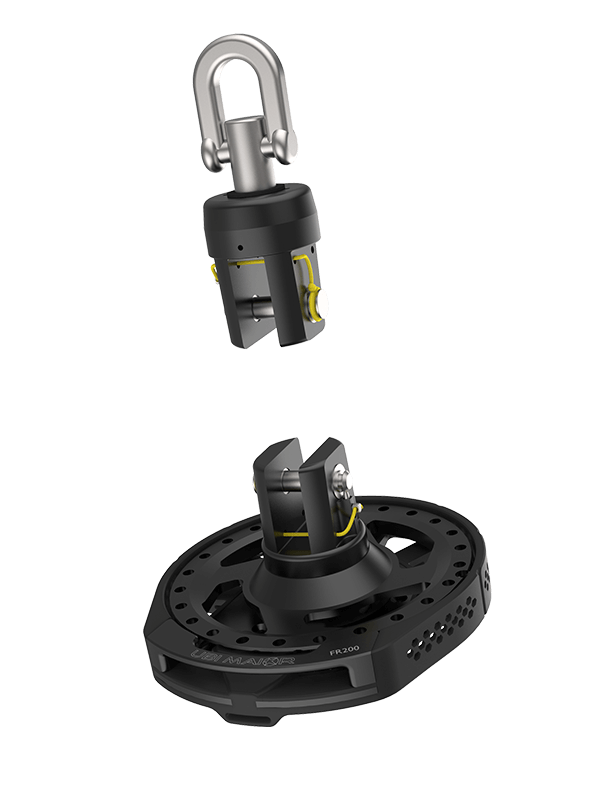

FR200
BOAT SIZE: 54-70ft
Ø ROLLER DRUM: 200mm
FURLER TYPE: classic
Ø PIN: 14mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
WEIGHT: 2650g
Description: aluminum/stainless steel/code zero/shackle

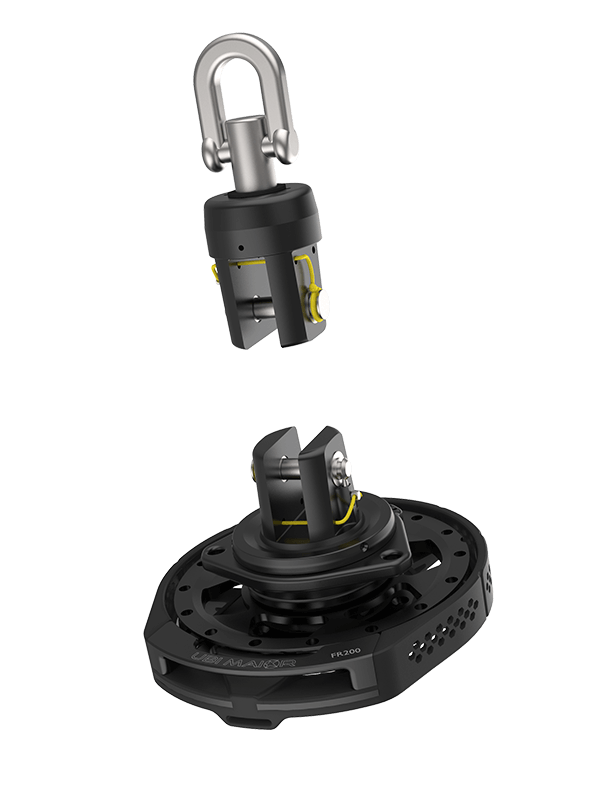

FR200m
BOAT SIZE: 54-70ft
Ø ROLLER DRUM: 200mm
FURLER TYPE: free tack
Ø PIN: 14mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
WEIGHT: 2850g
Description: aluminum/stainless steel/cgennaker/shackle/soft/x-bearing
FR200RW
BOAT SIZE: 54-70ft
Ø ROLLER DRUM: 200mm
FURLER TYPE: rewind
Ø PIN: 14mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
WEIGHT: 2850g
Description: aluminum/stainless steel/code zero/shackle
FR200RWm
BOAT SIZE: 54-70ft
Ø ROLLER DRUM: 200mm
FURLER TYPE: rewind/free tack
Ø PIN: 14mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
WEIGHT: 3050g
Description: aluminum/stainless steel/gennaker/shackle/x-bearing

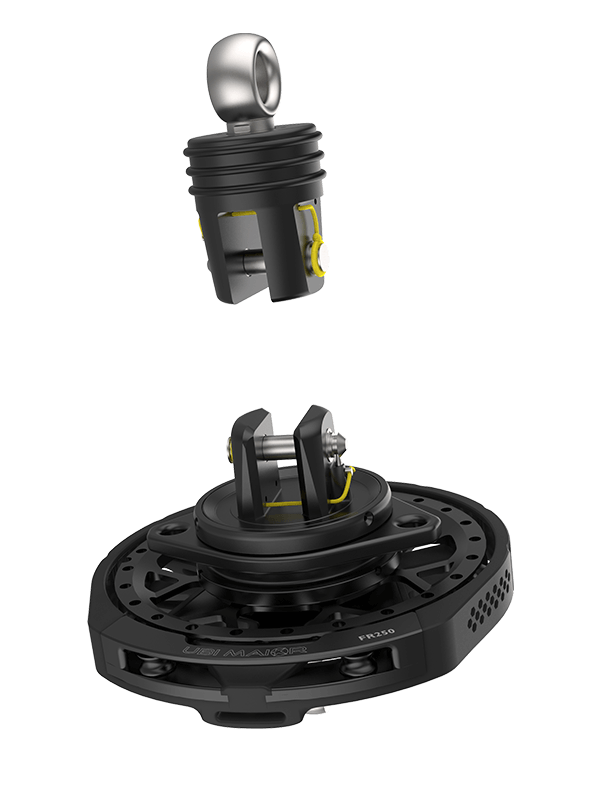

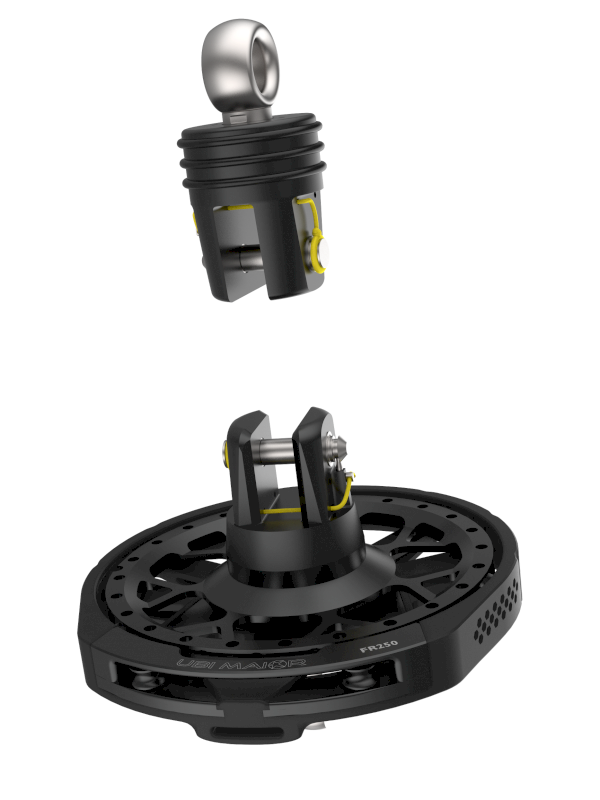

FR250
BOAT SIZE: 70-80ft
Ø ROLLER DRUM: 250mm
FURLER TYPE: classic
Ø PIN: 16mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
WEIGHT: 3900g
Description: aluminum/stainless steel/code zero

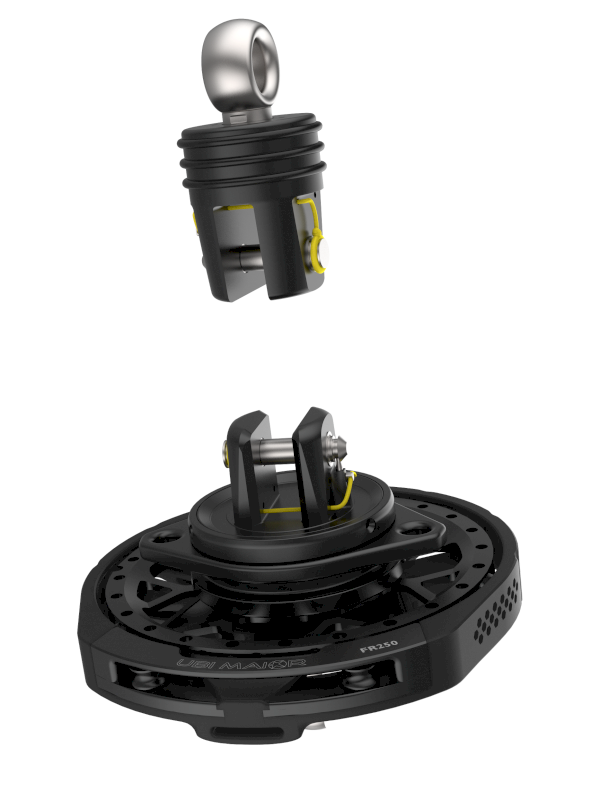

FR250m
BOAT SIZE: 70-80ft
Ø ROLLER DRUM: 250mm
FURLER TYPE: free tack
Ø PIN: 16mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
WEIGHT: 4150g
Description: aluminum/stainless steel/gennaker/x-bearing

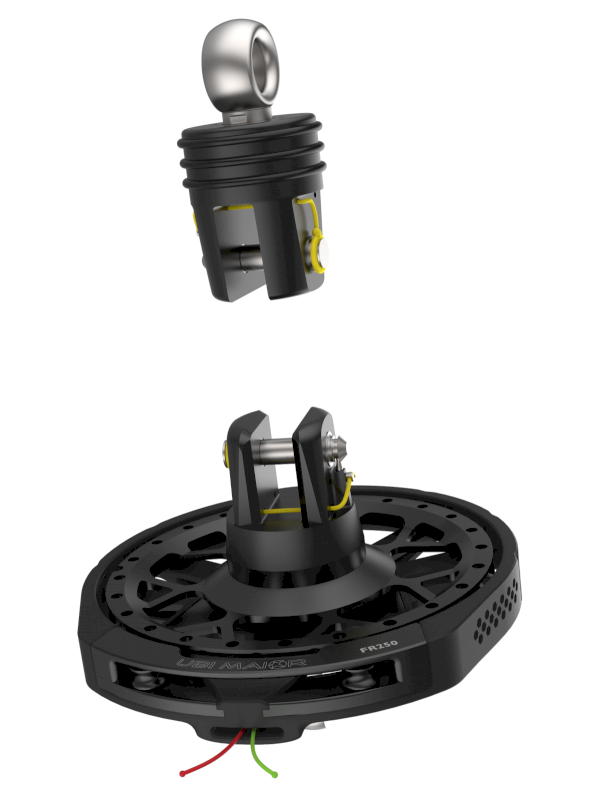

FR250RW
BOAT SIZE: 70-80ft
Ø ROLLER DRUM: 250mm
FURLER TYPE: rewind
Ø PIN: 16mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
WEIGHT: 4100g
Description: aluminum/stainless steel/code zero

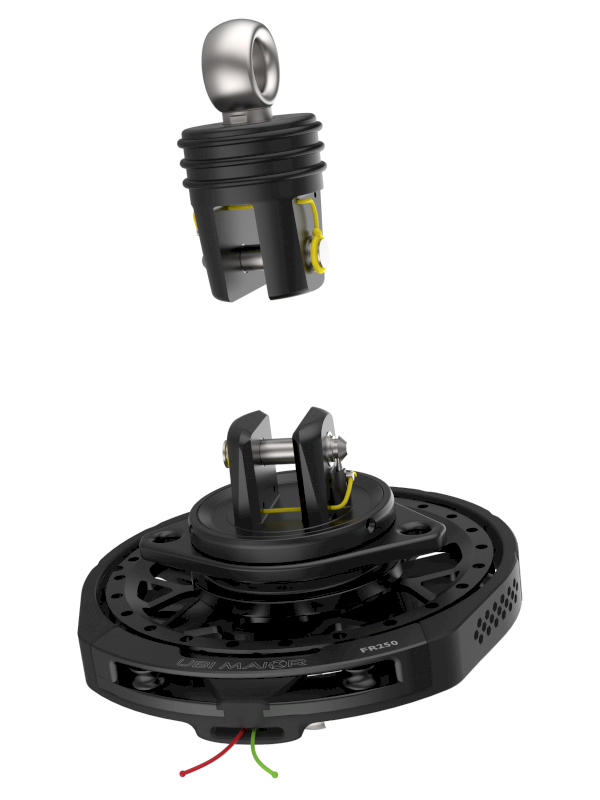

FR250RWm
BOAT SIZE: 70-80ft
Ø ROLLER DRUM: 250mm
FURLER TYPE: rewind/free tack
Ø PIN: 16mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
WEIGHT: 4450g
Description: aluminum/stainless steel/gennaker/x-bearing
FR250H
BOAT SIZE: 80-100ft
Ø ROLLER DRUM: 250Hmm
FURLER TYPE: classic
Ø PIN: 16mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
WEIGHT: 4095g
Description: aluminum/stainless steel/code zero/high load
FR250Hm
BOAT SIZE: 80-100ft
Ø ROLLER DRUM: 250Hmm
FURLER TYPE: free tack
Ø PIN: 16mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
WEIGHT: 4345g
Description: aluminum/stainless steel/gennaker/x-bearing/high load
FR250RWH
BOAT SIZE: 80-100ft
Ø ROLLER DRUM: 250Hmm
FURLER TYPE: rewind
Ø PIN: 16mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
WEIGHT: 4295g
Description: aluminum/stainless steel/code zero/high load
FR250RWHm
BOAT SIZE: 80-100ft
Ø ROLLER DRUM: 250Hmm
FURLER TYPE: rewind/free tack
Ø PIN: 16mm
MAX Ø FURLING LINE: 10mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
WEIGHT: 4645g
Description: aluminum/stainless steel/cgennaker/x-bearing/high load
FR125mADP
Ø PIN: 10mm
MAX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
WEIGHT: 220g
Description: used with FR125 models
FR150mADP
Ø PIN: 12mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
WEIGHT: 825g
Description: used with FR150 models/x-bearing
FR200mADP
Ø PIN: 14mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
WEIGHT: 1530g
Description: used with FR200 models/x-bearing
FR250mADP
Ø PIN: 16mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
WEIGHT: 2370g
Description: used with FR250 models/x-bearing
FR250HmADP
Ø PIN: 16mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
WEIGHT: 2450g
Description: used with FR250H models/x-bearing

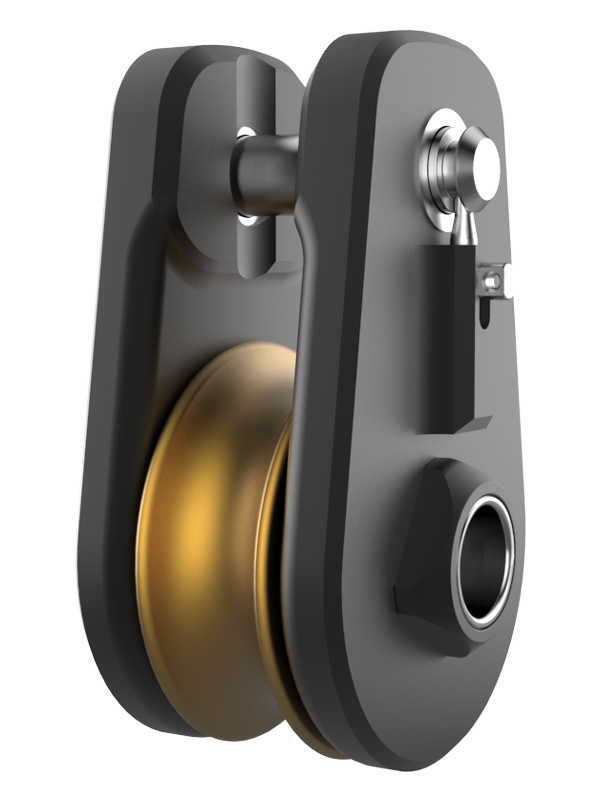

FR2:1-150
Ø SHEAVE: 55mm
MAX Ø LINE: 12mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 10000Kg
WEIGHT: 278g
Description: used with FR150 models
FR2:1-200
Ø SHEAVE: 46mm
MAX Ø LINE: 16mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 15000Kg
WEIGHT: 118g
Description: used with FR200 models
FR2:1-250
Ø SHEAVE: 60mm
MAX Ø LINE: 20mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
WEIGHT: 902g
Description: used with FR250 models
FR2:1-250H
Ø SHEAVE: 60mm
MAX Ø LINE: 20mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
WEIGHT: 980g
Description: used with FR250H models
FR3:1-125LF
Ø PIN: 8mm
MAX Ø LINE: 10mm
MAX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
WEIGHT: 150g
Description: used with FR125 models
FR3:1-150LF
Ø PIN: 12mm
MAX Ø LINE: 12mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
WEIGHT: 210g
Description: used with FR150 models
FR3:1-200LF
Ø PIN: 14mm
MAX Ø LINE: 16mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
WEIGHT: 390g
Description: used with FR200 models
FR3:1-250LF
Ø PIN: 16mm
MAX Ø LINE: 20mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
WEIGHT: 503g
Description: used with FR250 models
FR3:1-250HLF
Ø PIN: 16mm
MAX Ø LINE: 20mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
WEIGHT: 556g
Description: used with FR250H models
FRrd87
A=Ø PIN: 6mm
B=MAX Ø STAY: 7mm
C= MAX WIDTH: 34mm
WEIGHT: 18g
Description: used with FR87L/FR87 models
FRrd100
A=Ø PIN: 8mm
B=MAX Ø STAY: 9mm
C= MAX WIDTH: 34mm
WEIGHT: 21g
Description: used with FR100 models
FRrd125
A=Ø PIN: 10mm
B=MAX Ø STAY: 13mm
C= MAX WIDTH: 45mm
WEIGHT: 60g
Description: used with FR125 models
FRrd150
A=Ø PIN: 12mm
B=MAX Ø STAY: 16mm
C= MAX WIDTH: 63mm
WEIGHT: 86g
Description: used with FR150 models
FRrd200
A=Ø PIN: 14mm
B=MAX Ø STAY: 18mm
C= MAX WIDTH: 65mm
WEIGHT: 150g
Description: used with FR200 models
FRrd250
A=Ø PIN: 16mm
B=MAX Ø STAY: 21mm
C= MAX WIDTH: 67mm
WEIGHT: 160g
Description: used with FR250 models
FRds6
A=Ø PIN: 6mm
B=PIN TO PIN: 21mm
C=MAX Ø STAY: 6mm
WEIGHT: 23g
Description: used with FR87L/FR87 models
FRds8
A=Ø PIN: 8mm
B=PIN TO PIN: 27mm
C=MAX Ø STAY: 8mm
WEIGHT: 45g
Description: used with FR100 models
FRds10
A=Ø PIN: 10mm
B=PIN TO PIN: 33mm
C=MAX Ø STAY: 10mm
WEIGHT: 64g
Description: used with FR125 models
FRds12
A=Ø PIN: 12mm
B=PIN TO PIN: 40mm
C=MAX Ø STAY: 12mm
WEIGHT: 78g
Description: used with FR150 models
FRrd6hp
A=Ø PIN: 6mm
B=WIDTH TAPE: 15mm
C=THICKNESS: 10mm
WEIGHT: 60g
Description: used with FR87L/FR87 models

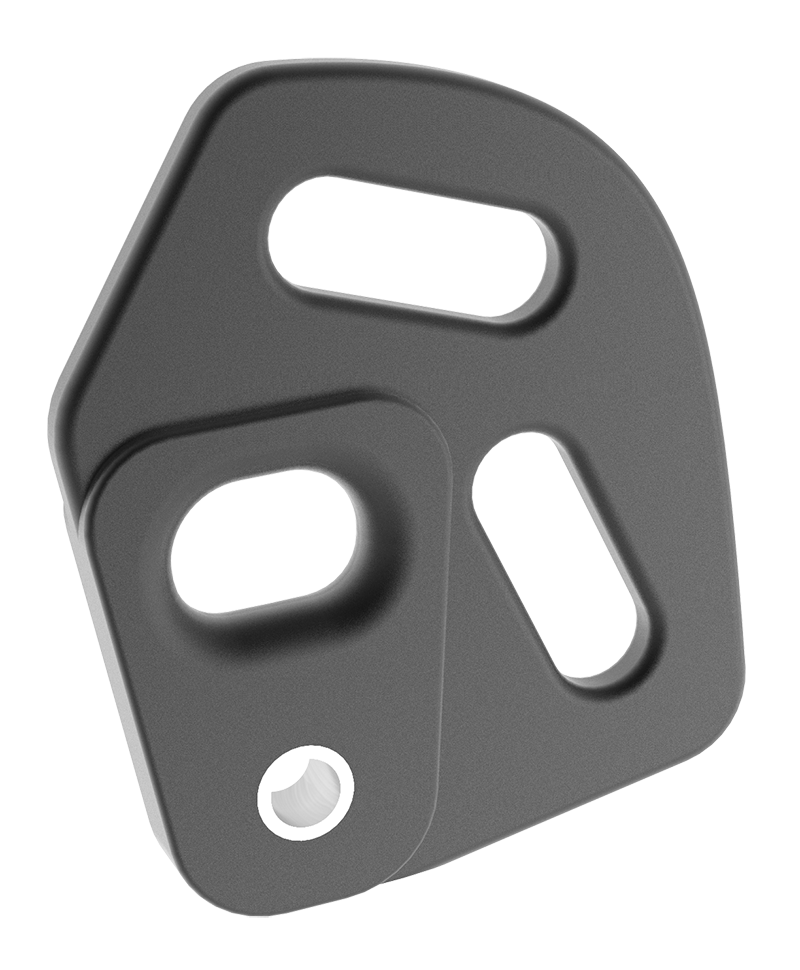

FRrd6tp
A=Ø PIN: 6mm
B=WIDTH TAPE: 15mm
C=THICKNESS: 10mm
WEIGHT: 64g
Description: used with FR87L/FR87 models
FRrd8hp
A=Ø PIN: 8mm
B=WIDTH TAPE: 25mm
C=THICKNESS: 10mm
WEIGHT: 80g
Description: used with FR100 models
FRrd8tp
A=Ø PIN: 8mm
B=WIDTH TAPE: 25mm
C=THICKNESS: 10mm
WEIGHT: 80g
Description: used with FR100 models

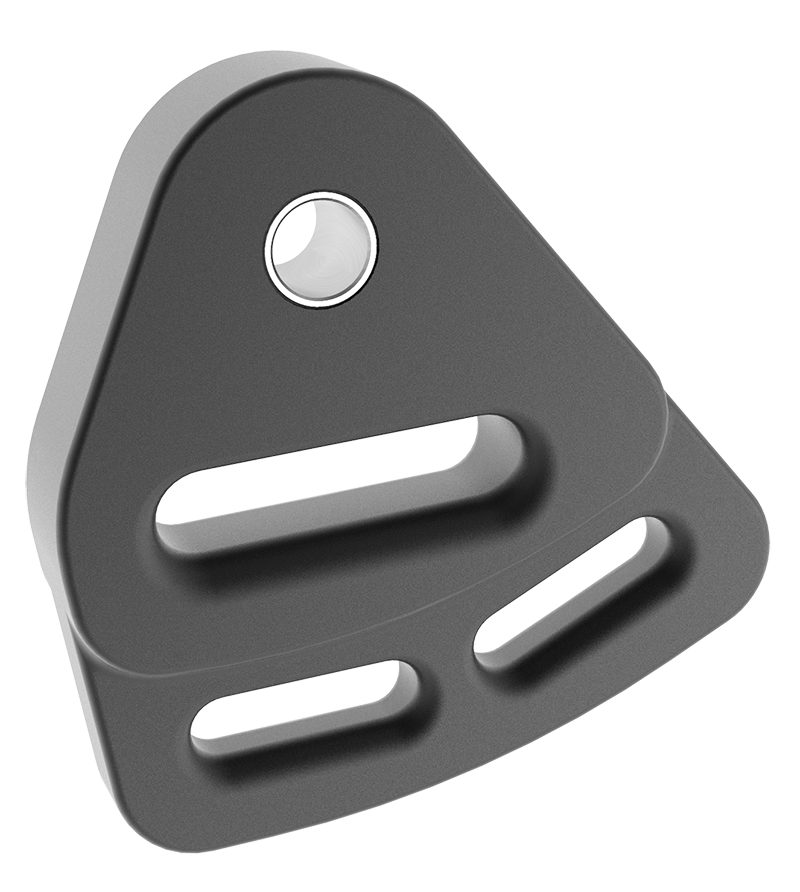

FRrd10hp
A=Ø PIN: 10mm
B=WIDTH TAPE: 25mm
C=THICKNESS: 15mm
WEIGHT: 147g
Description: used with FR125 models
FRrd10tp
A=Ø PIN: 10mm
B=WIDTH TAPE: 25mm
C=THICKNESS: 15mm
WEIGHT: 147g
Description: used with FR125 models
FRrd12hp
A=Ø PIN: 12mm
B=WIDTH TAPE: 30mm
C=THICKNESS: 18mm
WEIGHT: 240g
Description: used with FR150 models
FRrd12tp
A=Ø PIN: 12mm
B=WIDTH TAPE: 30mm
C=THICKNESS: 18mm
WEIGHT: 240g
Description: used with FR150 models
FRrd14hp
A=Ø PIN: 14mm
B=WIDTH TAPE: 39mm
C=THICKNESS: 20mm
WEIGHT: 310g
Description: used with FR200 models
FRrd14tp
A=Ø PIN: 14mm
B=WIDTH TAPE: 39mm
C=THICKNESS: 20mm
WEIGHT: 310g
Description: used with FR200 models

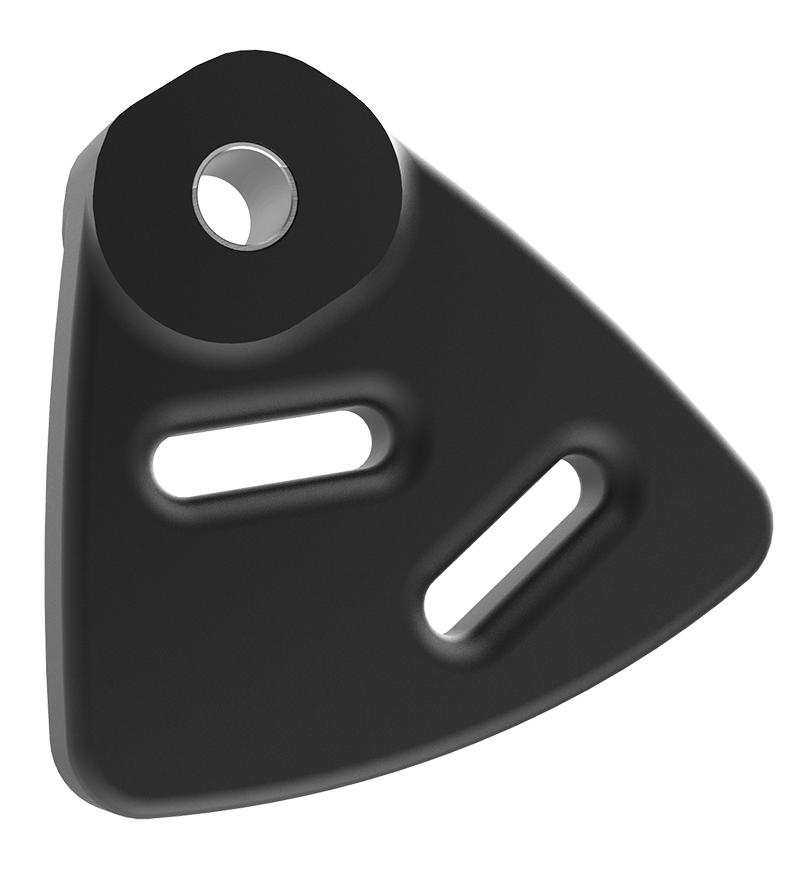

FRrd16hp
A=Ø PIN: 16mm
B=WIDTH TAPE: 40mm
C=THICKNESS: 25mm
WEIGHT: 482g
Description: used with FR250 models

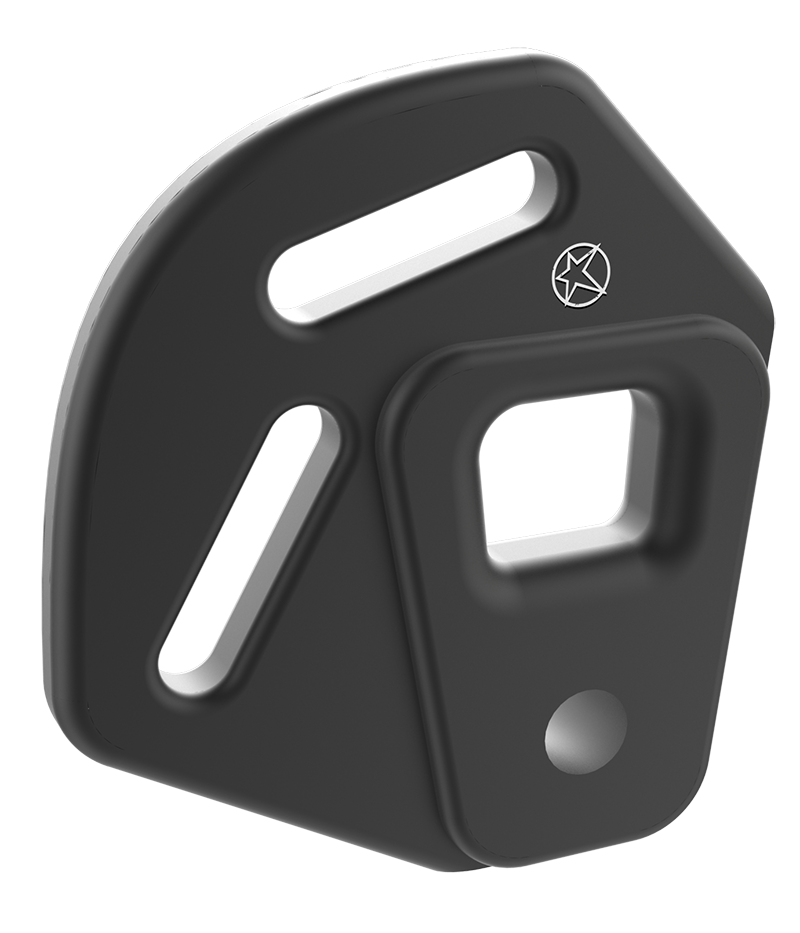

FRrd16tp
A=Ø PIN: 16mm
B=WIDTH TAPE: 40mm
C=THICKNESS: 25mm
WEIGHT: 721g
Description: used with FR250 models
FRLS150
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
Ø LOOP (included): 11mm
WEIGHT: 190g
Description: used with FR150 models
FRLS200
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
Ø LOOP (included): 13mm
WEIGHT: 340g
Description: used with FR200 models
FRLS250
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
Ø LOOP (included): 14mm
WEIGHT: 490g
Description: used with FR250 models

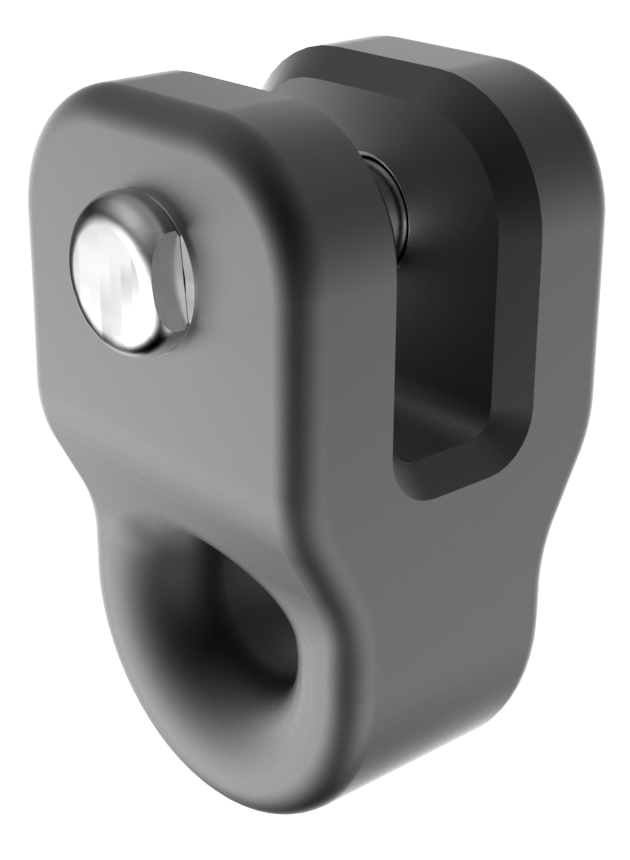

FRLS250H
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
Ø LOOP (included): 15mm
WEIGHT: 543g
Description: used with FR250H models

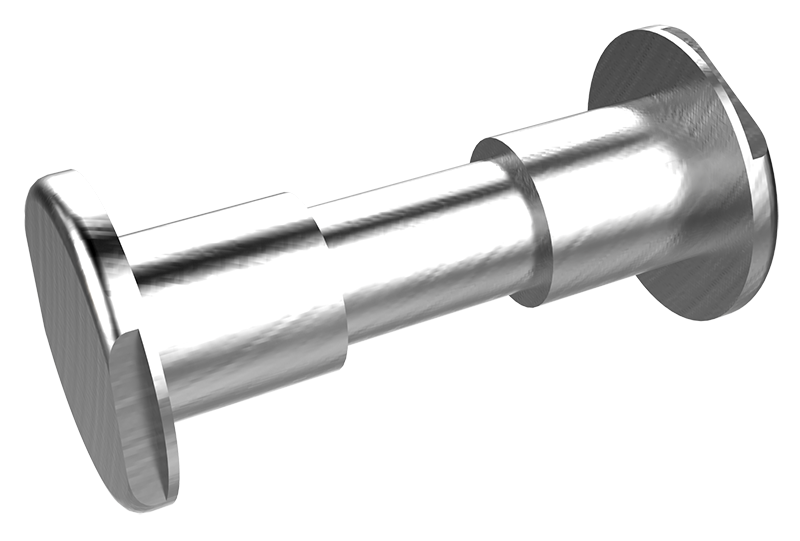

TB-125FR
Ø: 8mm
MAX WORKING LOAD: 3000Kg
BREAKING LOAD: 6000Kg
Ø LOOP (included): 10mm
WEIGHT: 32g
Description: used with FR125 models
TB-150FR
Ø: 10mm
MAX WORKING LOAD: 5000Kg
BREAKING LOAD: 10000Kg
Ø LOOP (included): 11mm
WEIGHT: 59g
Description: used with FR150 models
TB-200FR
Ø: 12mm
MAX WORKING LOAD: 7500Kg
BREAKING LOAD: 15000Kg
Ø LOOP (included): 13mm
WEIGHT: 145g
Description: used with FR200 models
TB-250FR
Ø: 16mm
MAX WORKING LOAD: 10000Kg
BREAKING LOAD: 20000Kg
Ø LOOP (included): 14mm
WEIGHT: 190g
Description: used with FR250 models
TB-250HFR
Ø: 16mm
MAX WORKING LOAD: 13000Kg
BREAKING LOAD: 26000Kg
Ø LOOP (included): 15mm
WEIGHT: 195g
Description: used with FR250H models

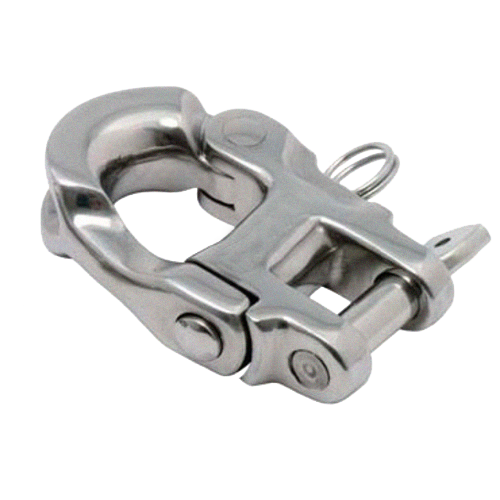

FRgmA6-87
Ø PIN: 6mm
MAX WORKING LOAD: 1500Kg
BREAKING LOAD: 3000Kg
WEIGHT: 118g
Description: 2:1 connection/used with FR87L/FR87 models
FRgmA6-100
Ø PIN: 6mm
MAX WORKING LOAD: 1500Kg
BREAKING LOAD: 3000Kg
WEIGHT: 118g
Description: 2:1 connection/used with FR100 models
FRgmA10
Ø PIN: 10mm
MAX WORKING LOAD: 2500Kg
BREAKING LOAD: 5000Kg
WEIGHT: 278g
Description: 2:1 connection/used with FR150 models

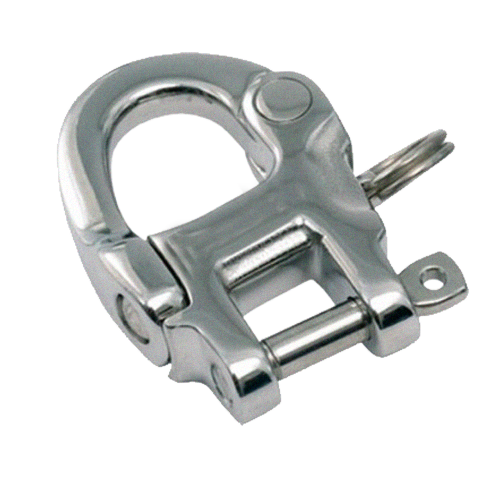

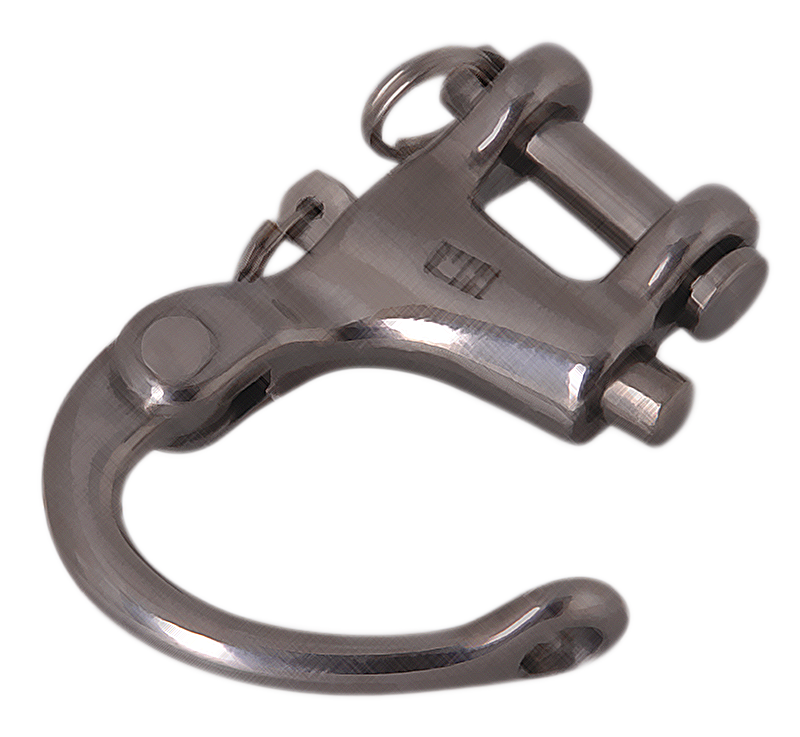

FRgm6-87
Ø PIN: 6mm
MAX WORKING LOAD: 1500Kg
BREAKING LOAD: 3000Kg
WEIGHT: 96g
Description: used with FR87L/FR87 models
FRgm6-100
Ø PIN: 6mm
MAX WORKING LOAD: 1500Kg
BREAKING LOAD: 3000Kg
WEIGHT: 96g
Description: used with FR100 models
FRgm8
Ø PIN: 8mm
MAX WORKING LOAD: 1280Kg
BREAKING LOAD: 3850Kg
WEIGHT: 130g
Description: used with FR125 models
FRgm10
Ø PIN: 10mm
MAX WORKING LOAD: 3500Kg
BREAKING LOAD: 7000Kg
WEIGHT: 257g
Description: used with FR150 models
FRlp4.8
Ø LINE: 8mm
LOOP LENGHT: 4m
Description: Furling Line used with FR100/FR125 models

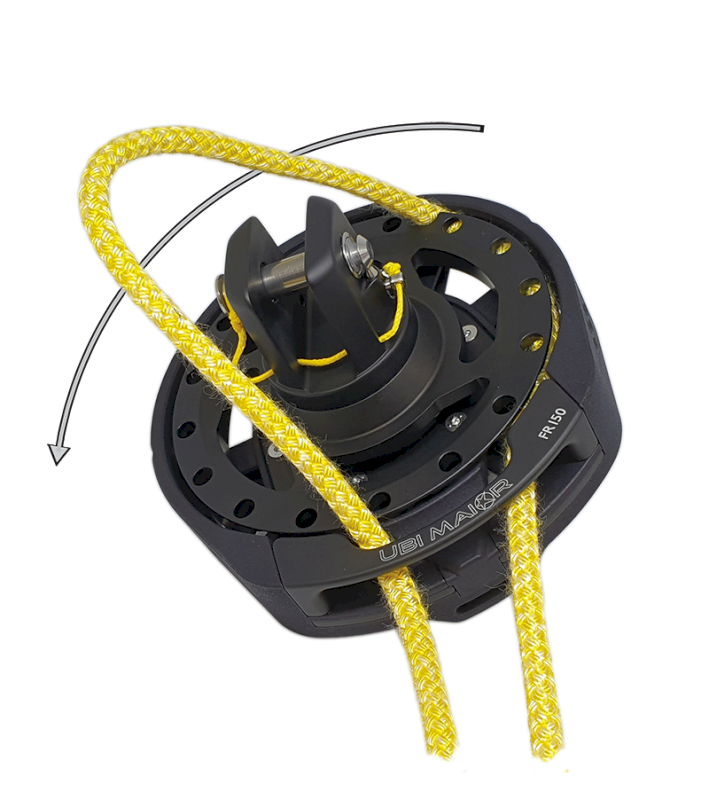

FRlp5.8
Ø LINE: 8mm
LOOP LENGHT: 5m
Description: Furling Line used with FR100/FR125 models
FRlp5.10
Ø LINE: 10mm
LOOP LENGHT: 5m
Description: Furling Line used with FR150/FR200/FR250 models
FRlp6.10
Ø LINE: 10mm
LOOP LENGHT: 6m
Description: Furling Line used with FR150/FR200/FR250 models
FRlp7.10
TYPOLOGY: Furling Line
Ø LINE: 10mm
LOOP LENGHT: 7m
Description: Descr

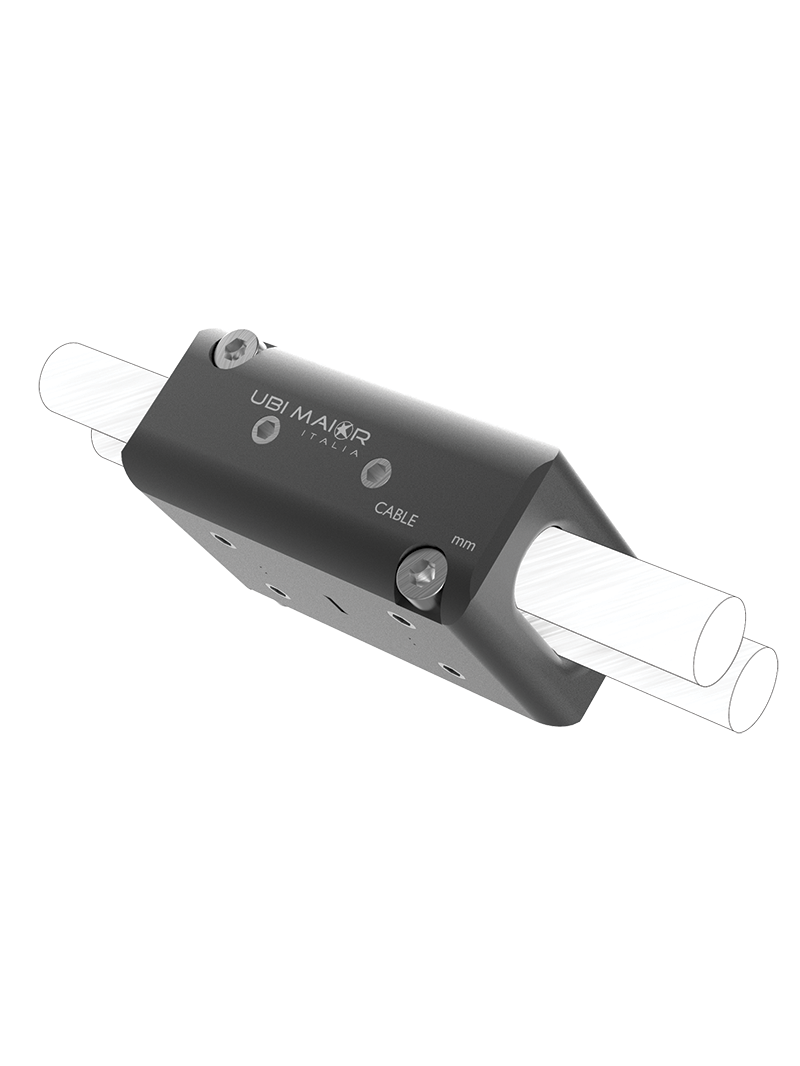

FRcp9
ø CABLE SIZE RANGE: 8-9mm
LENGTH: 50mm
MAX ø SIZE: 34mm
WEIGHT: 68g
Description: clamp for antitorsion cable/aluminium
FRcp11
ø CABLE SIZE RANGE: 10-11mm
LENGTH: 60mm
MAX ø SIZE: 42mm
WEIGHT: 68g
Description: clamp for antitorsion cable/aluminium
FRcp13
ø CABLE SIZE RANGE: 12-13mm
LENGTH: 70mm
MAX ø SIZE: 44mm
WEIGHT: 70g
Description: clamp for antitorsion cable/aluminium
FRcp16
ø CABLE SIZE RANGE: 15-16mm
LENGTH: 90mm
MAX ø SIZE: 65mm
WEIGHT: 486g
Description: clamp for antitorsion cable/aluminium
FRcp18
ø CABLE SIZE RANGE: 17-18mm
LENGTH: 90mm
MAX ø SIZE: 65mm
WEIGHT: 486g
Description: clamp for antitorsion cable/aluminium
